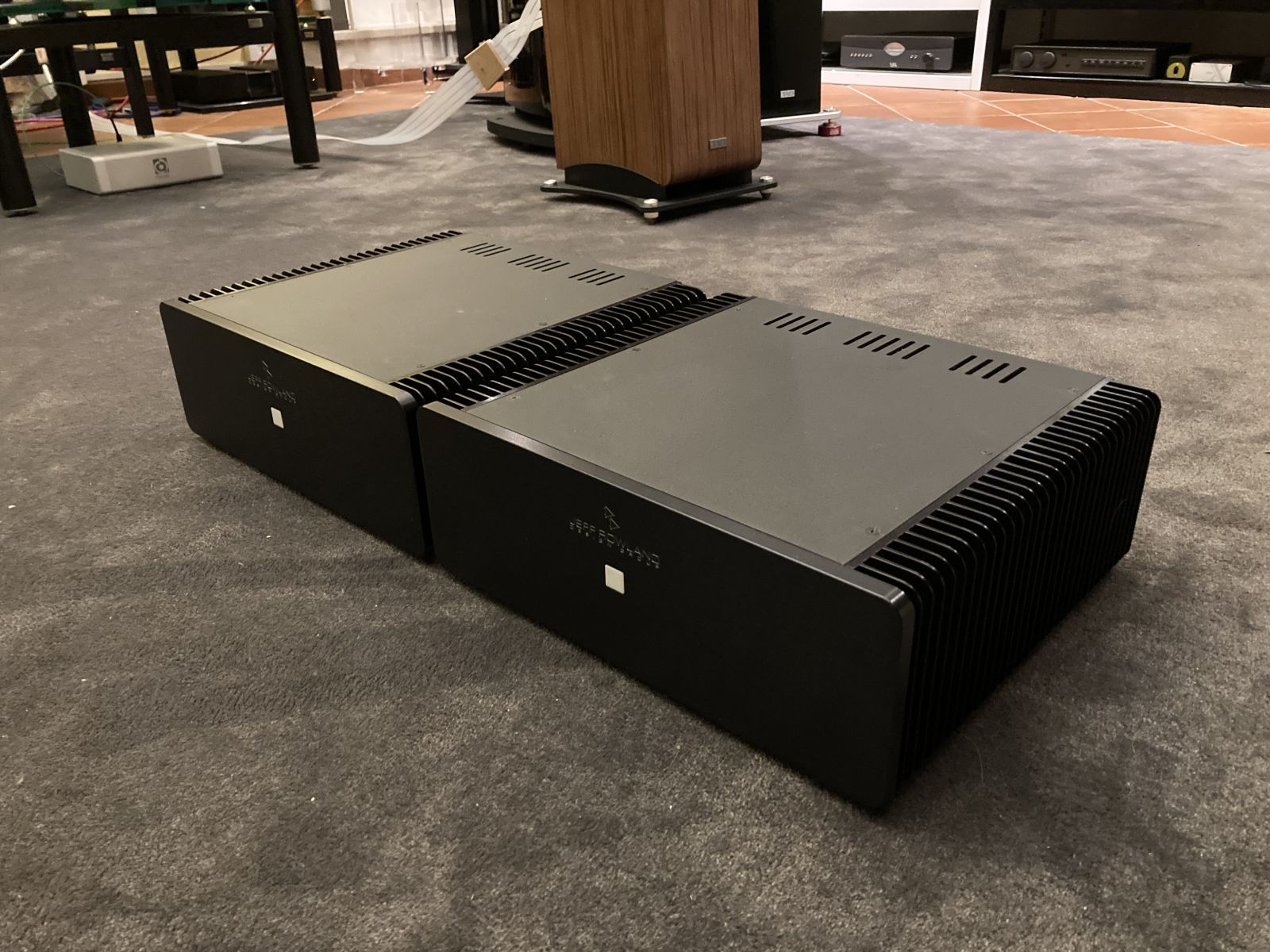

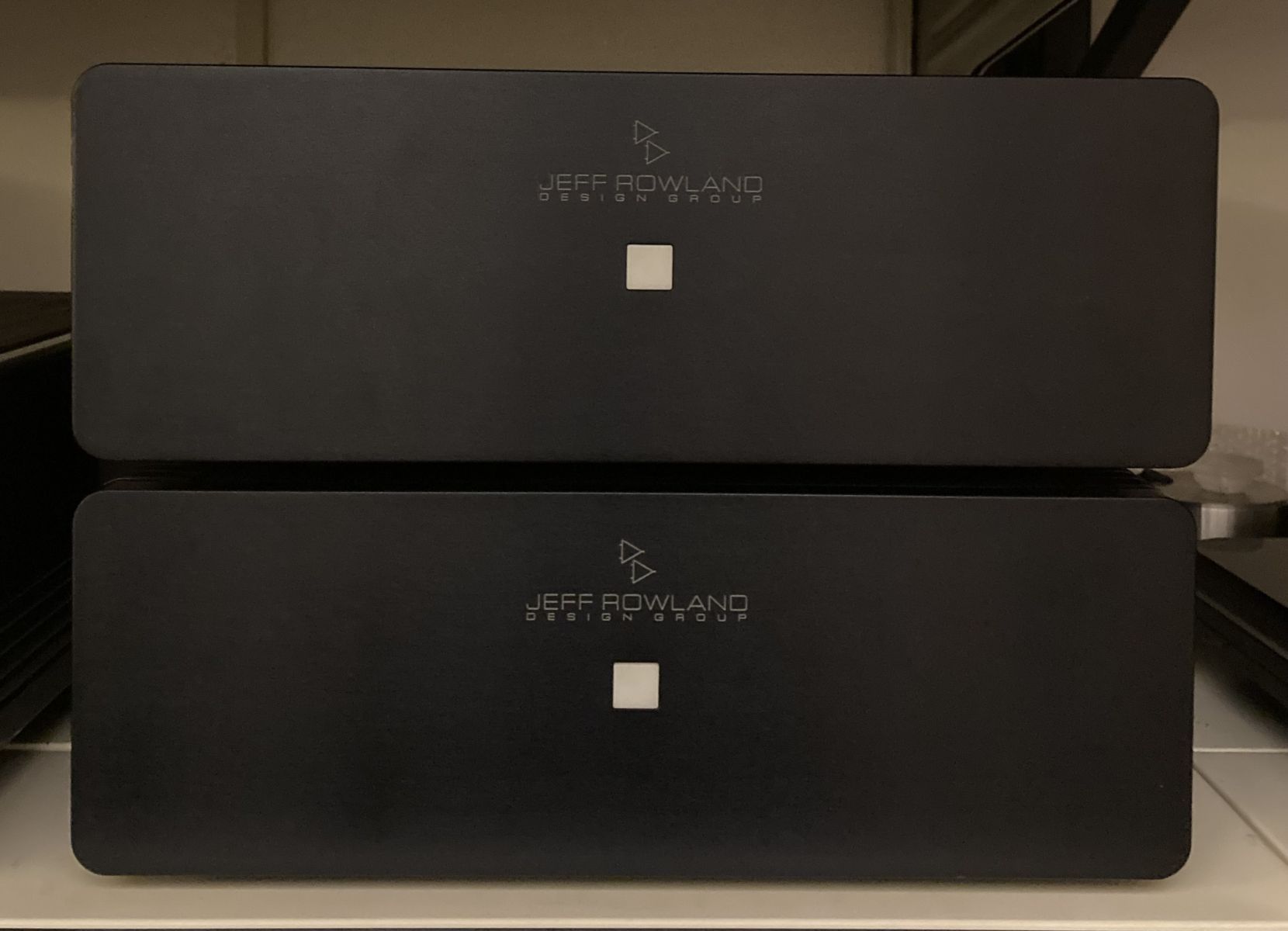

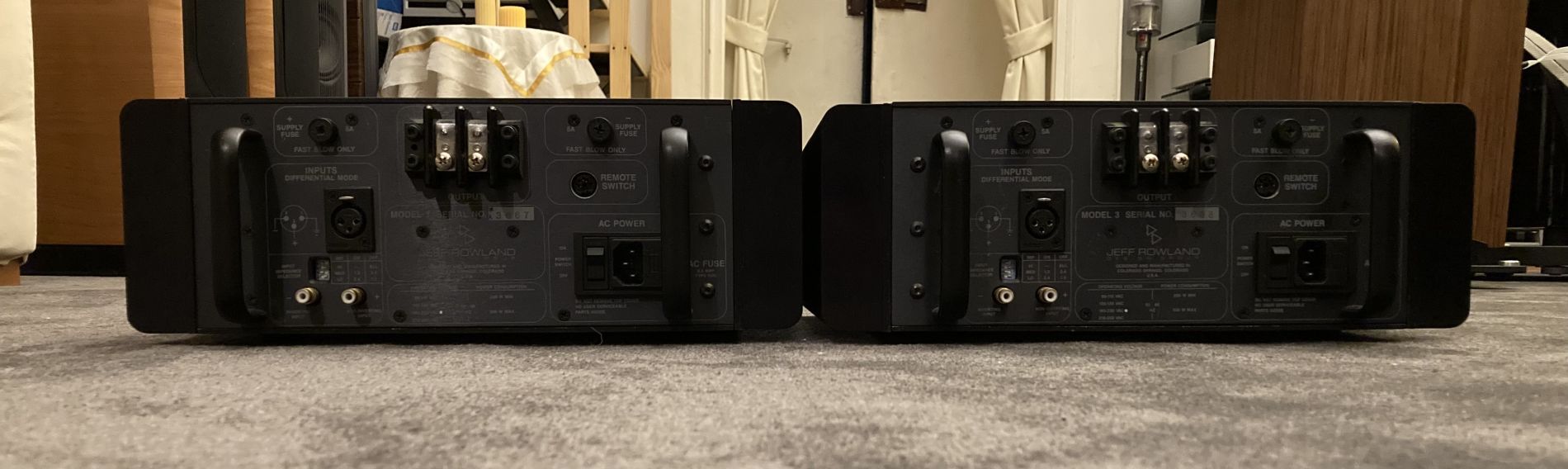

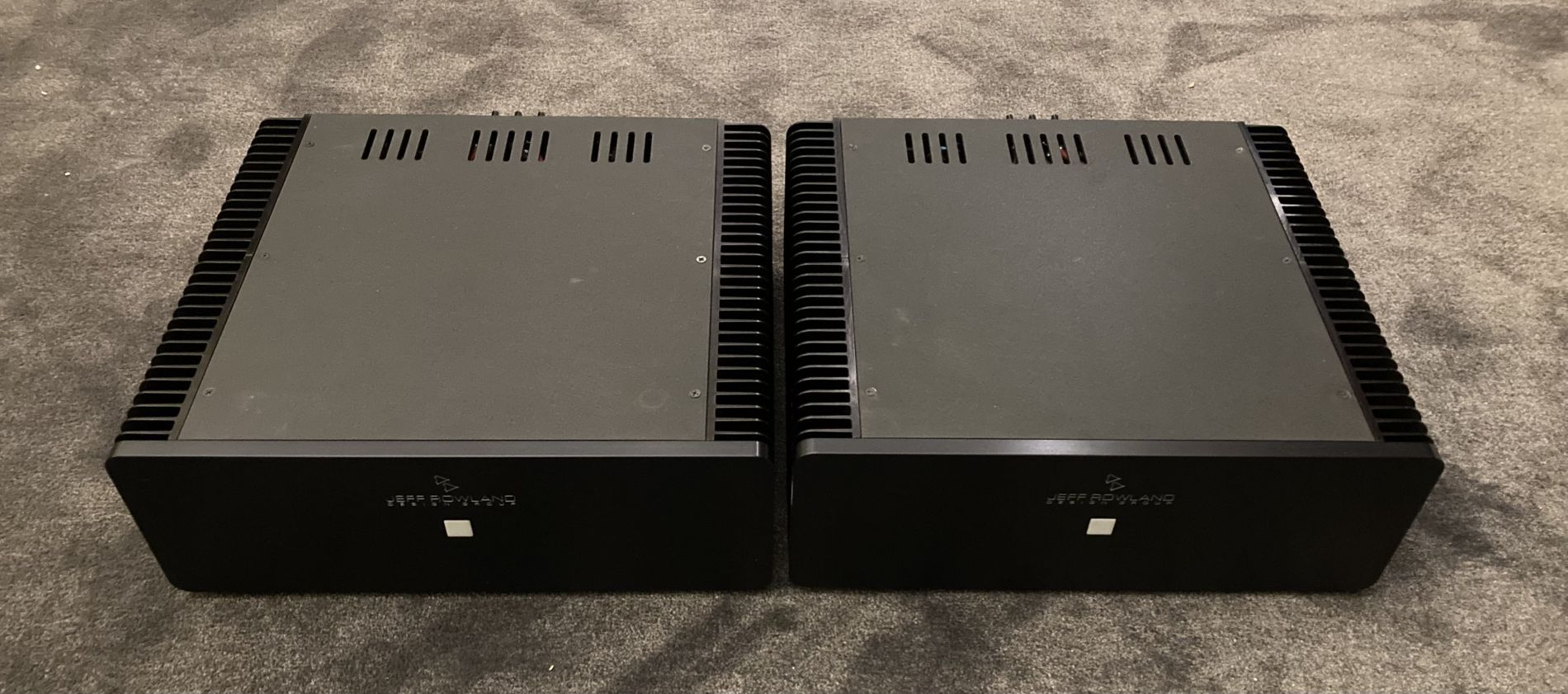

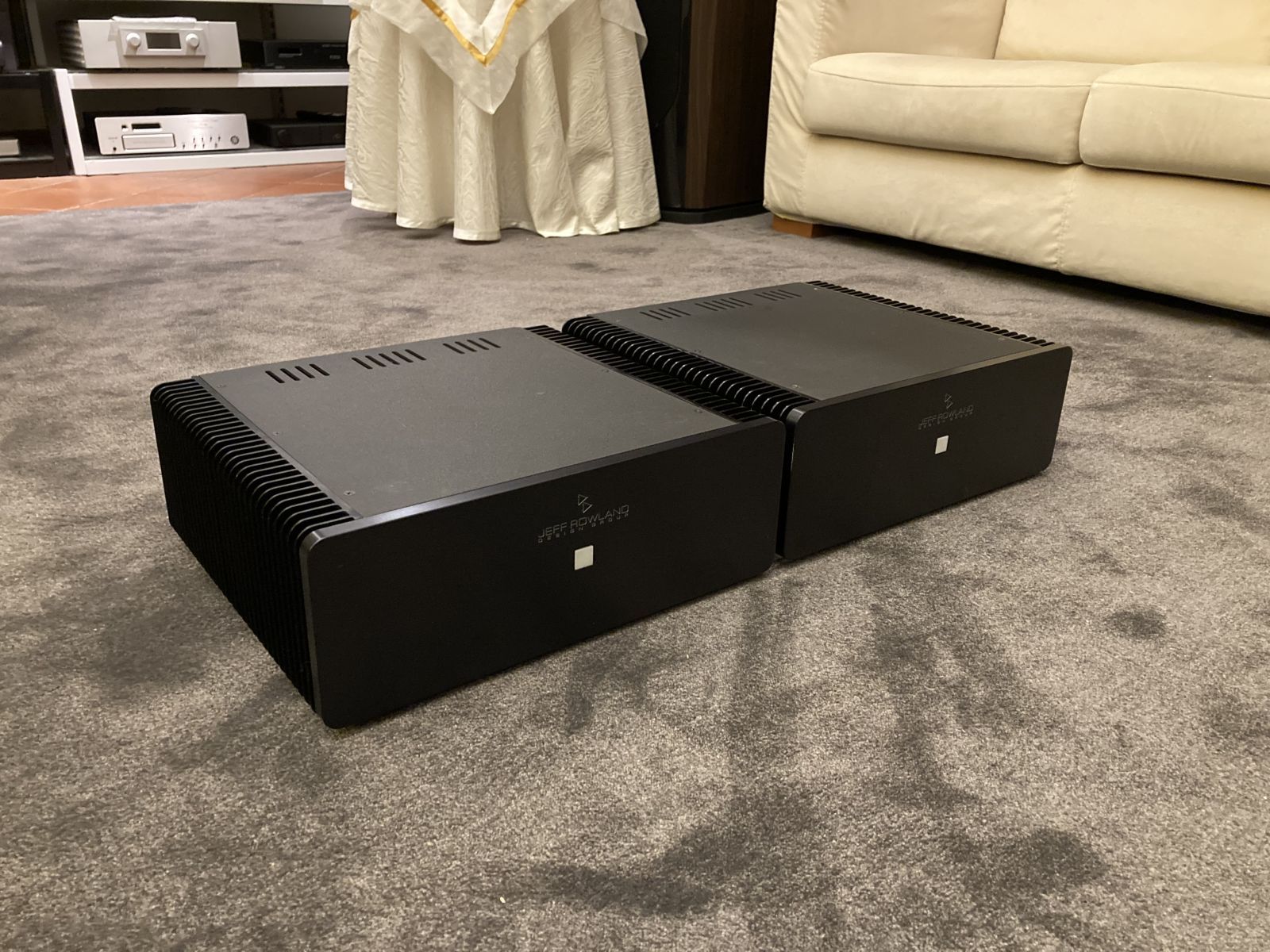

JEFF ROWLAND MODEL 3

€2.500,00

TECHNICAL SPECIFICATIONS

100 watts RMS continuous, 8 ohms

200 watts RMS continuous, 4 ohms

320 watts RMS continuous, 2 ohms

Gain: 32 dB

Power Bandwidth

0.15 Hz to 175 kHz, -3 dB

Slew Rate

45 volts per microsecond

THD and Noise

Less than .03%, 1 kHz, 8 ohms, 20 watts

Less than .08%, 1 kHz, 8 ohms, 100 watts

Damping Factor

Greater than 120, 20 Hz to 20 kHz, 8 ohms

Greater than 80, 100 kHz, 8 ohms

Output Current

32 amps peak, continuous

80 amps peak, 0.1 ohm, 20 msec, 1 kHz

Overall Gain

Selectable: 20, 26, 29.5, 32 dB

Sensitivity

136 mV, 1 watt, 8 ohms

Input Impedance

Selectable: 100k, 20k, 600 ohms

Power Requirements

100V-240V

Dimensions

19 in. W x 8.75 in. H x 24 in. D

48 cm W x 22 cm H x 61 cm D
