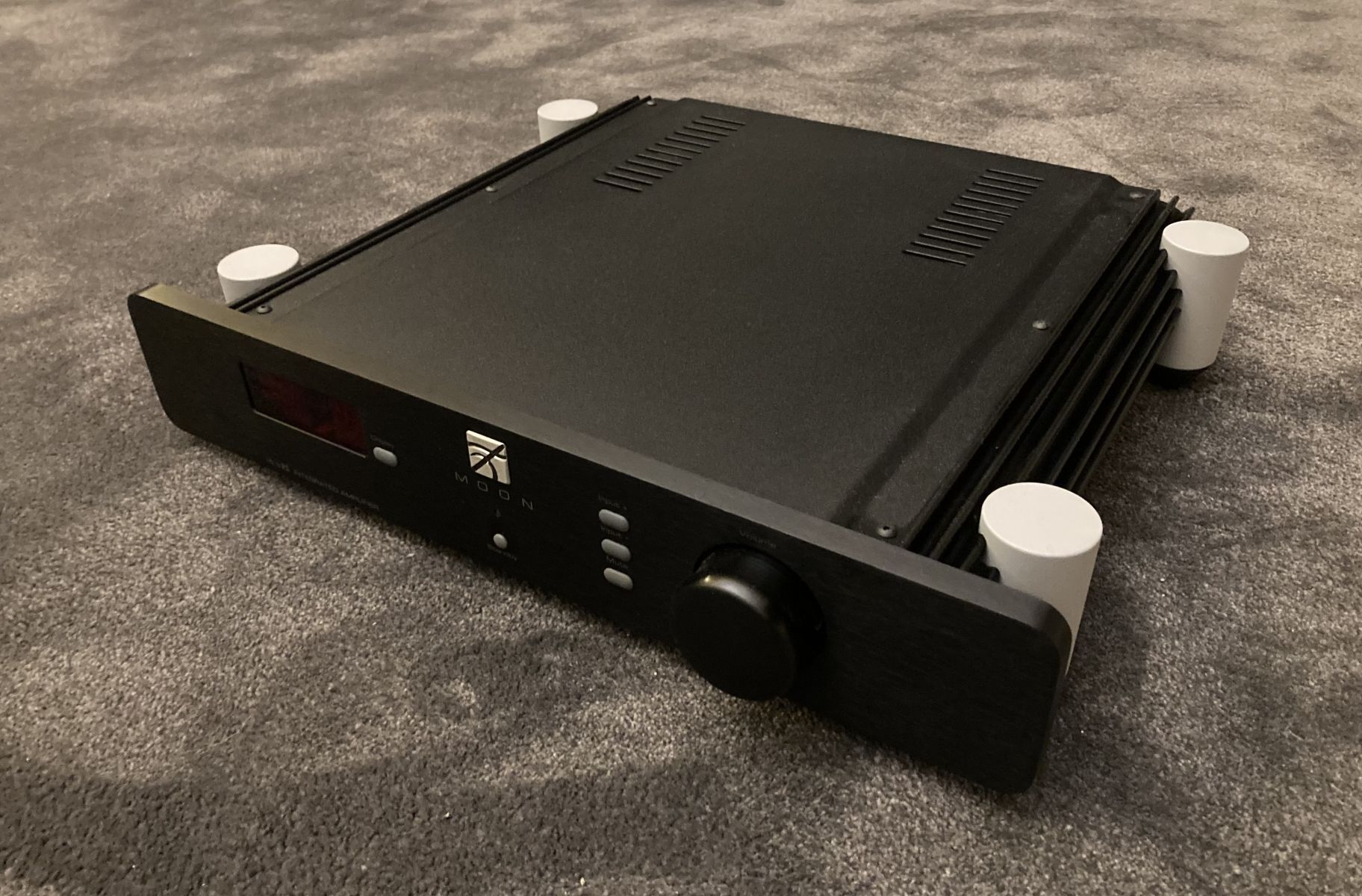

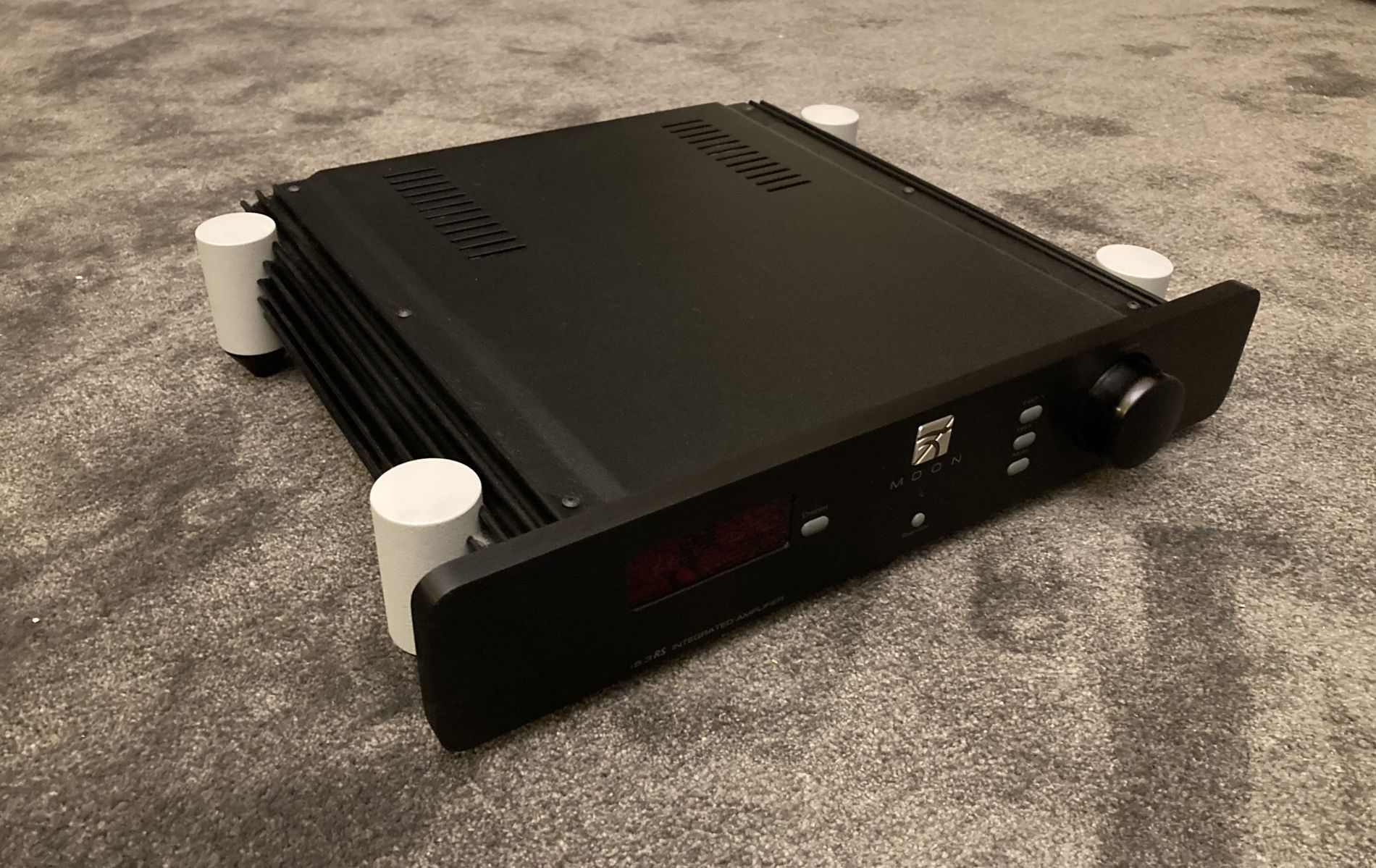

MOON i5.3 RS

€1.600,00

Technical aspects:

IR input for external control (all discrete codes)
One line input which bypasses the gain control stage to accommodate a component, such as a
home-theatre processor, whose own volume control is used instead

Custom proprietary toroidal transformer design with lower magnetic, electrical and thermal loss,
yielding an improved power transfer and lower regulation factor.

The result is increased current
speed and better dynamics

An extremely short capacitor-free signal path measuring only 14 inches in length from input RCA’s
to output binding posts, eliminating virtually all potential sources of interference and producing a
sonically faster transient response

The power amplifier section uses a “no overall feedback” design resulting in real-time amplification,
more accurate musical reproduction with respect to tonality, virtually non-existent IMD and the
elimination of common phase errors resulting from feedback

The gain section uses a Crystal microprocessor functioning as a “shunt to ground” that doesn’t
degrade sonic performance regardless of the volume setting

Class A output to 5 watts for greater efficiency
Precision matched Bipolar output devices which offer superb linearity throughout the entire
audio frequency spectrum

Accurate matching of the very finest high quality electronic components

A symmetrical circuit design
PCB w/ pure copper tracings & gold plating that yields low impedance characteristics

Extremely rigid chassis construction to minimize the effects of external vibrations
Improved reliability through the elimination of moving parts

Designed to be powered up at all times for optimal performance
Low operating temperature to ensure a longer than normal life expectancy.

Specifications Configuration ………………………………………………… Dual-Mono

(Partial) Power Supply Transformer ………………………………… 0.5kVA

Power Supply Capacitance ……………………………….. 40,000µF

Class Of Operation – Preamplifier ………………………… Class A

Class Of Operation – Amplifier ……………………………. Class A/B

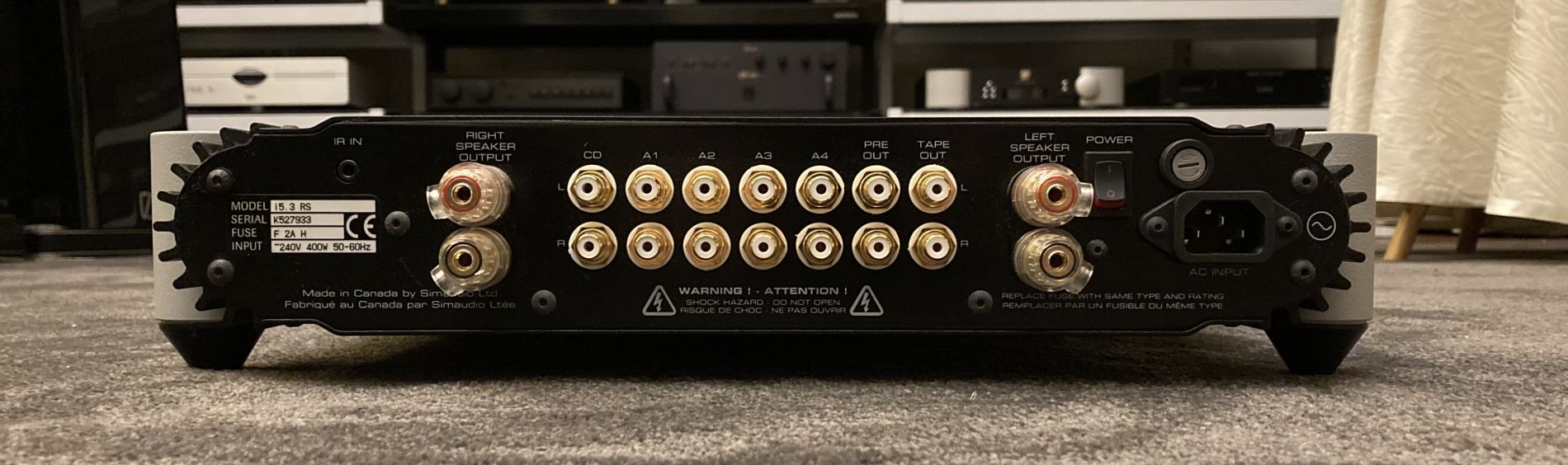

Single-ended inputs …………………………………………. 5 (RCA)

Input Device Type – Preamplifier ………………………… J-FET

Input Sensitivity …………………………………………….. 370mV – 3.0V RMS

Input Impedance …………………………………………… 14,000Ω

Tape Output …………………………………………………. 1 (RCA)

Preamplifier output …………………………………………. 1 (RCA)

Output Device Type – Amplifier ………………………….. Bipolars – 2 per channel

Output Binding Posts ……………………………………….. WBT

Output Power @ 8Ω ………………………………………… 85 Watts per channel

Output Power @ 4Ω ………………………………………… 130 Watts per channel

Output Impedance ………………………………………….. 0.04Ω

Damping Factor ……………………………………………… > 200 Gain

Control ………………………………………………….. RGB cs – “Shunt-To-Ground”

Gain …………………………………………………………….. 37dB

Dynamic Headroom …………………………………………. 6dB

Signal-to-noise Ratio ………………………………………. 97dB @ full power Maximum

Output Voltage …………………………………. 25 Volts

Slew Rate ……………………………………………………… 20V/µs

Maximum Current – Peak …………………………………. 18 amperes

Maximum Current – Continuous ………………………… 10 amperes

Frequency Response ………………………………………. 10Hz – 70kHz +0/-3dB

Crosstalk @ 1kHz …………………………………………… -50dB

Intermodulation Distortion ……………………………….. Unmeasureable

THD (20Hz – 20kHz @ 1 watt) ………………………….. < 0.1%

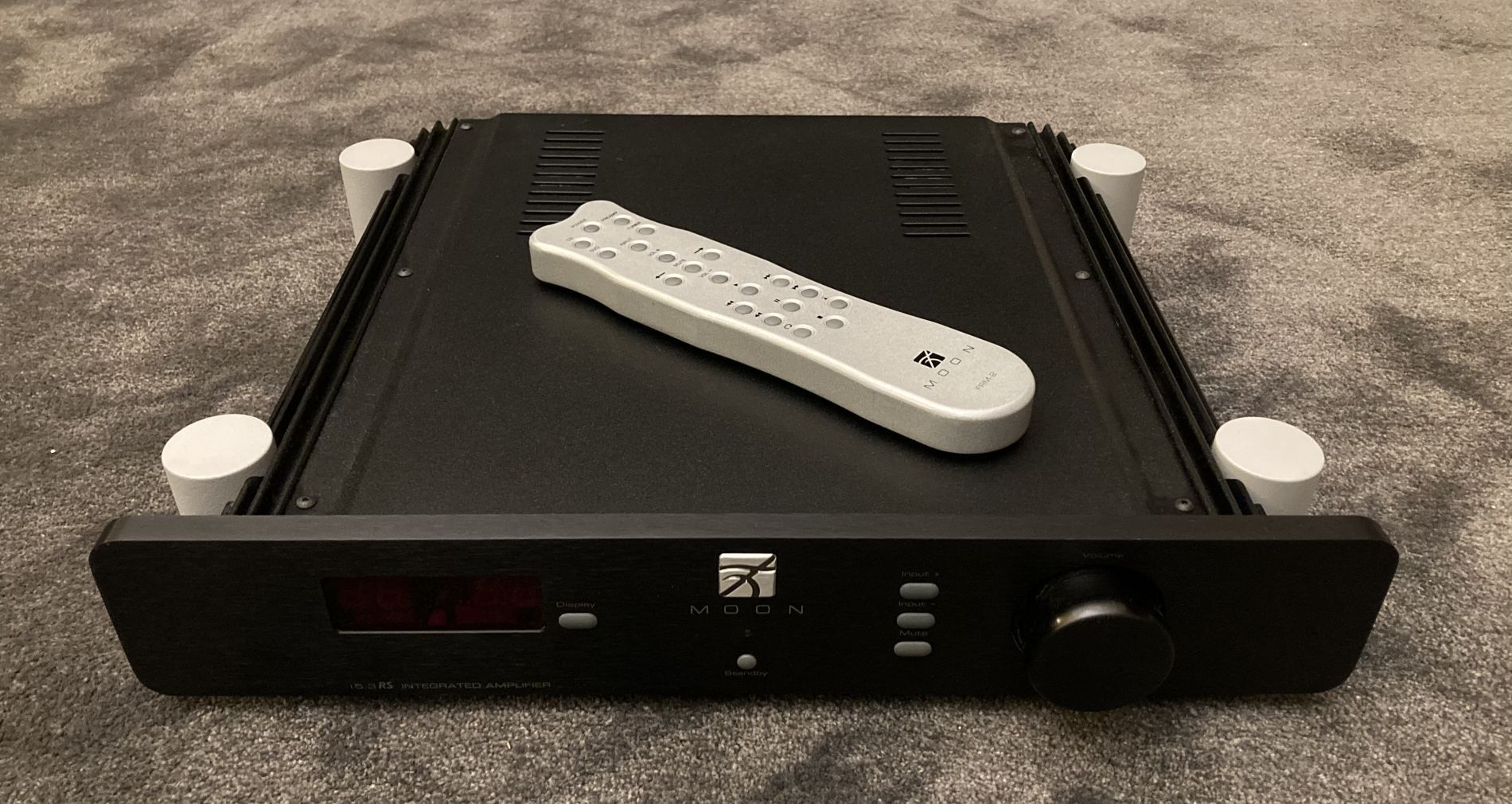

Remote Control ……………………………………………… All Aluminum Simple-Function (SRM)

AC Power Requirements ………………………………….. 120V / 60Hz or 240V / 50Hz

Shipping Weight …………………………………………….. 28 lbs / 13 Kgs

Dimensions (W x H x D, inches) ………………………… 17 x 4 x 15
