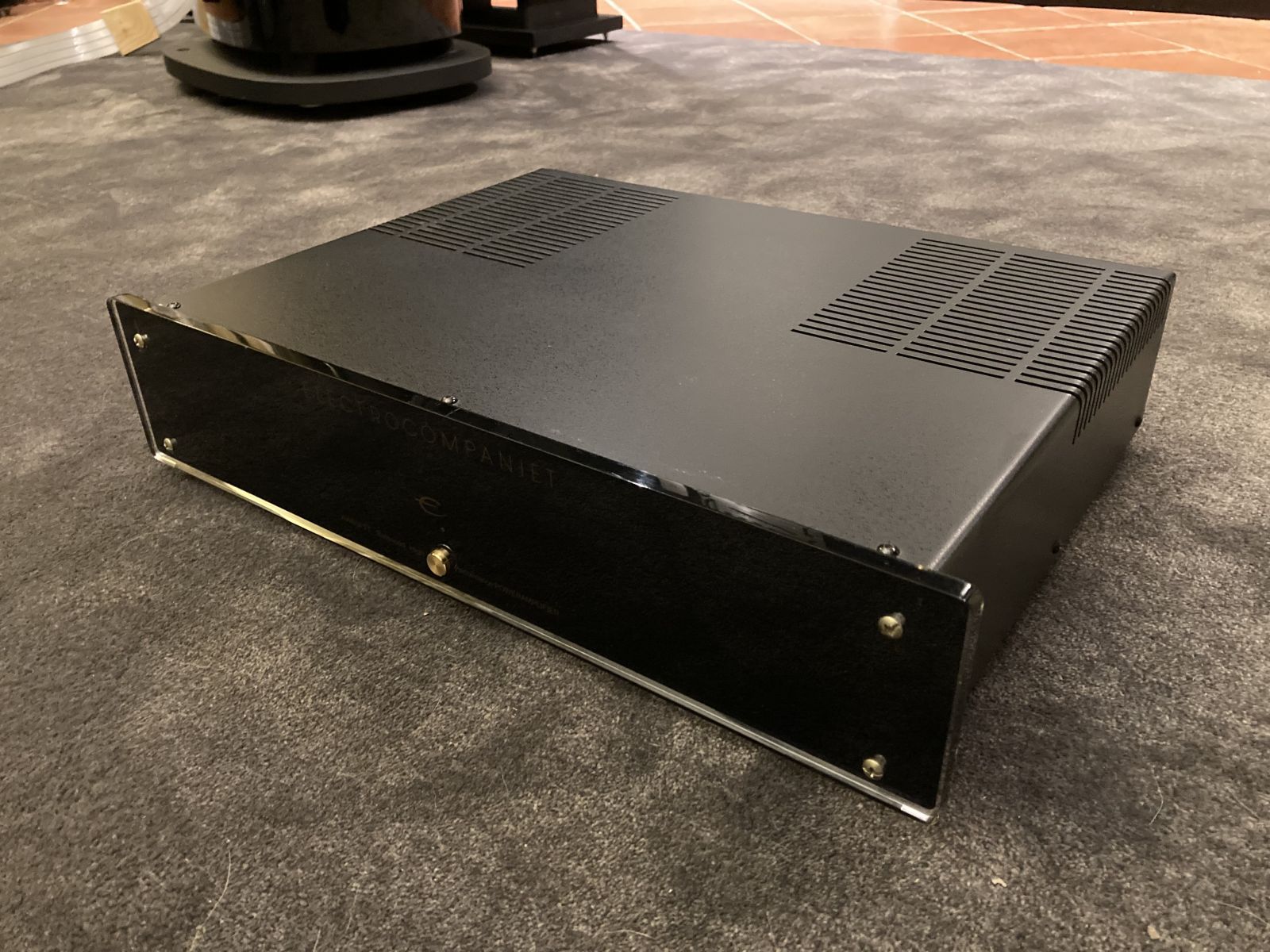

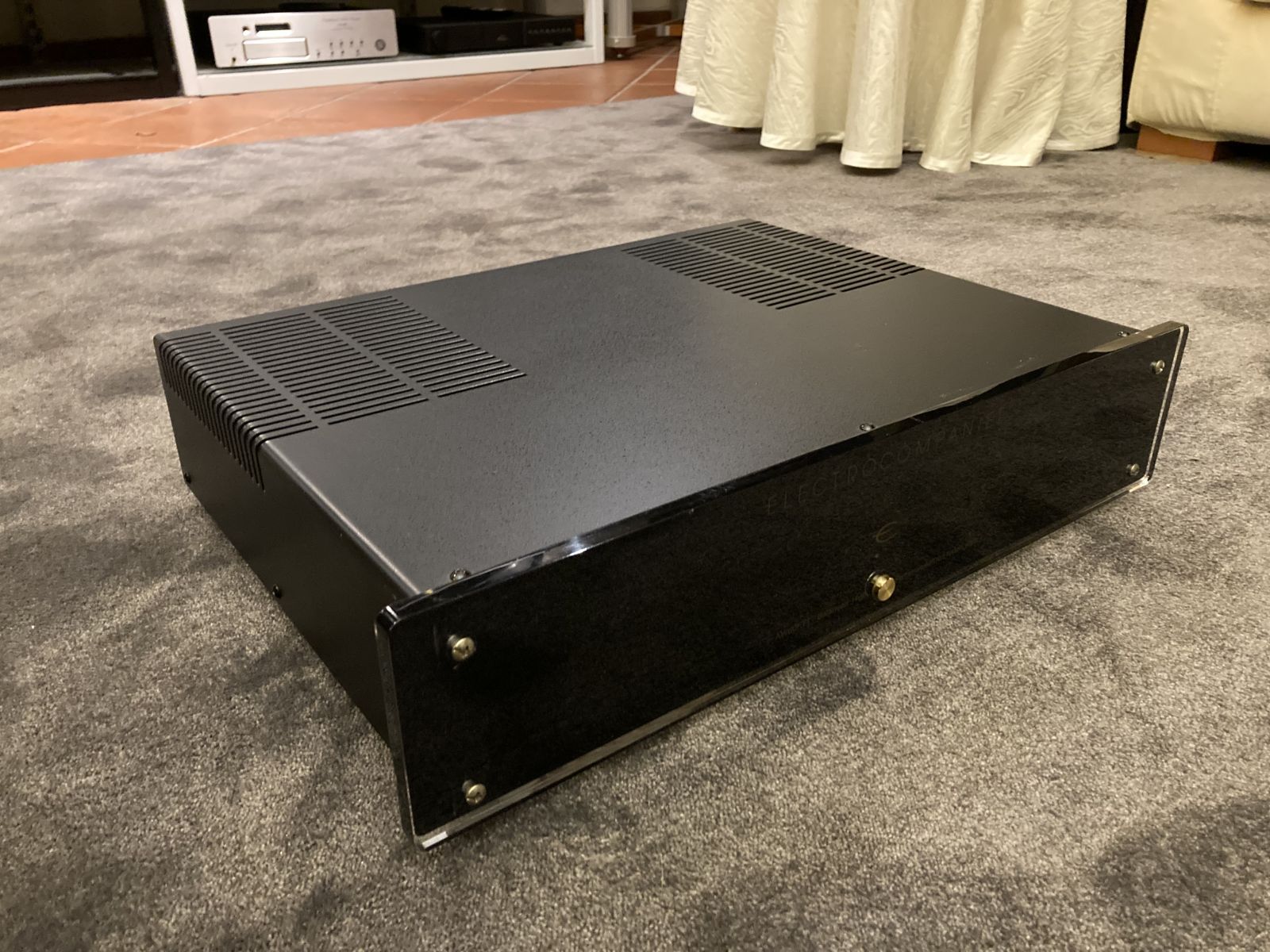

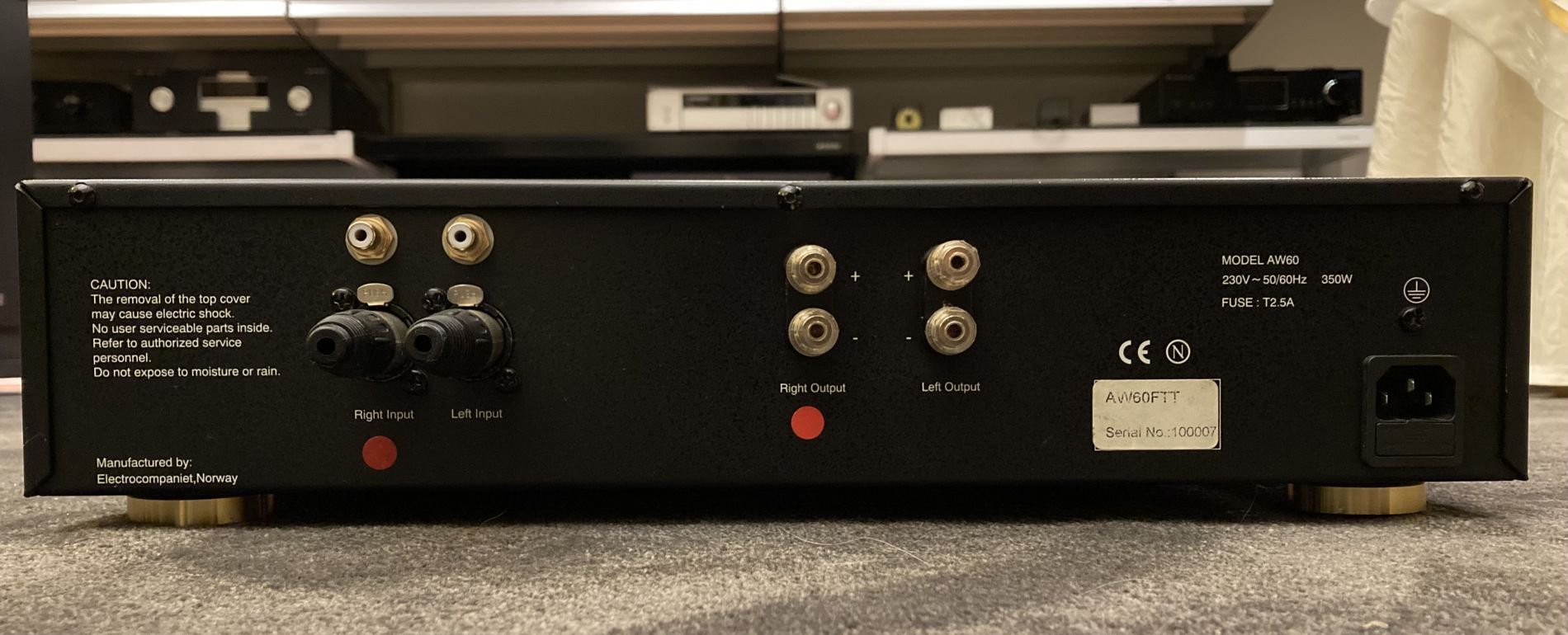

ELECTROCOMPANIET AW 60 FTT

€800,00



Technical Specifications AW 60 FTT:

The following technical data were measured on randomised test objects and are typical data. All

measurements are made with the following equipment:

Distortion analyser: Tektronix AA501

Oscilloscope: Tektronix 468

Oscillator: Tektronix SG505

Frequency counter: Rascal 9838

Phase meter: Hewlett Packard 3575A

Amplifier sectionMain voltage 120 V / 240 V. Clipping point of the amplifier is set to a level where total harmonic

distortion (THD) is 0.2 %.

Output Impedance (20 Hz - 20 kHz) < 0,01 Ohm

Nominal input Impedance 330 kOhm

Input sensitivity for rated output single end 0.8V

Input sensitivity for rated output balanced 0.4V

Max. peak current > 60 A

THD (measured at 1 kHz half power, 8 Ohm) < 0,005 %

THD (measured at 1 kHz -1 dB, 8 Ohm) < 0,007 %

Noise (measured with both inputs shorted) < 130 μV

Frequency response DC - 65 kHz

Power bandwidth DC - 100 kHz

Channel separation (1 kHz - 10 kHz) > 90 dB

Rated output power10 % change in line voltage will give app. 20 % change in output power.

8 Ohm 2 x 60 W

4 Ohm 2 x 110 W

2 Ohm 2 x 150 W

Power consumption (no load or signal) 70 W

Dimensions

Width 483 mm / 19 inches

Depth 380mm / 15 inches

Height 115mm / 4.5 inches

Weight 11Kg / 24.2 lbs.
