Specifications :
Rated Power Output…………………….750W RMS into 8 ohms
…………………….continuous, driven from 20Hz to 20kHz at <0.040% THD
…………………….1300W RMS into 4 ohms
…………………….continuous, driven from 20Hz to 20kHz at <0.070% THD
Frequency Response……………………5Hz to 40kHz +/- 0.25dB
Total Harmonic Distortion + Noise……Typically: 0.008%, at 1kHz into 8ohms
……20Hz to 20kHz: <0.040%, into 8 ohms
Voltage Gain………………………………34.3dB
Dynamic Headroom……………………..>1.1dB, rated with music
Voltage Swing…………………………….322V p-p
Maximum Current Output………………160A
Damping Factor…………………………..>700, at 1kHz into 8 ohms
Signal-to-Noise Ratio……………………Rated Output (unweighted): 100dB
Input Sensitivity…………………………..Unbalanced: 1.5V RMS
…………………………..Balanced: +/- 0.78V RMS
Input Impedance………………………….Unbalanced: 22k ohms
………………………….Balanced: 3k ohms
Smoothing Capacitance…………………60,000uF
Driver Stage………………………………..Class A
Output Stage………………………………Class A/AB

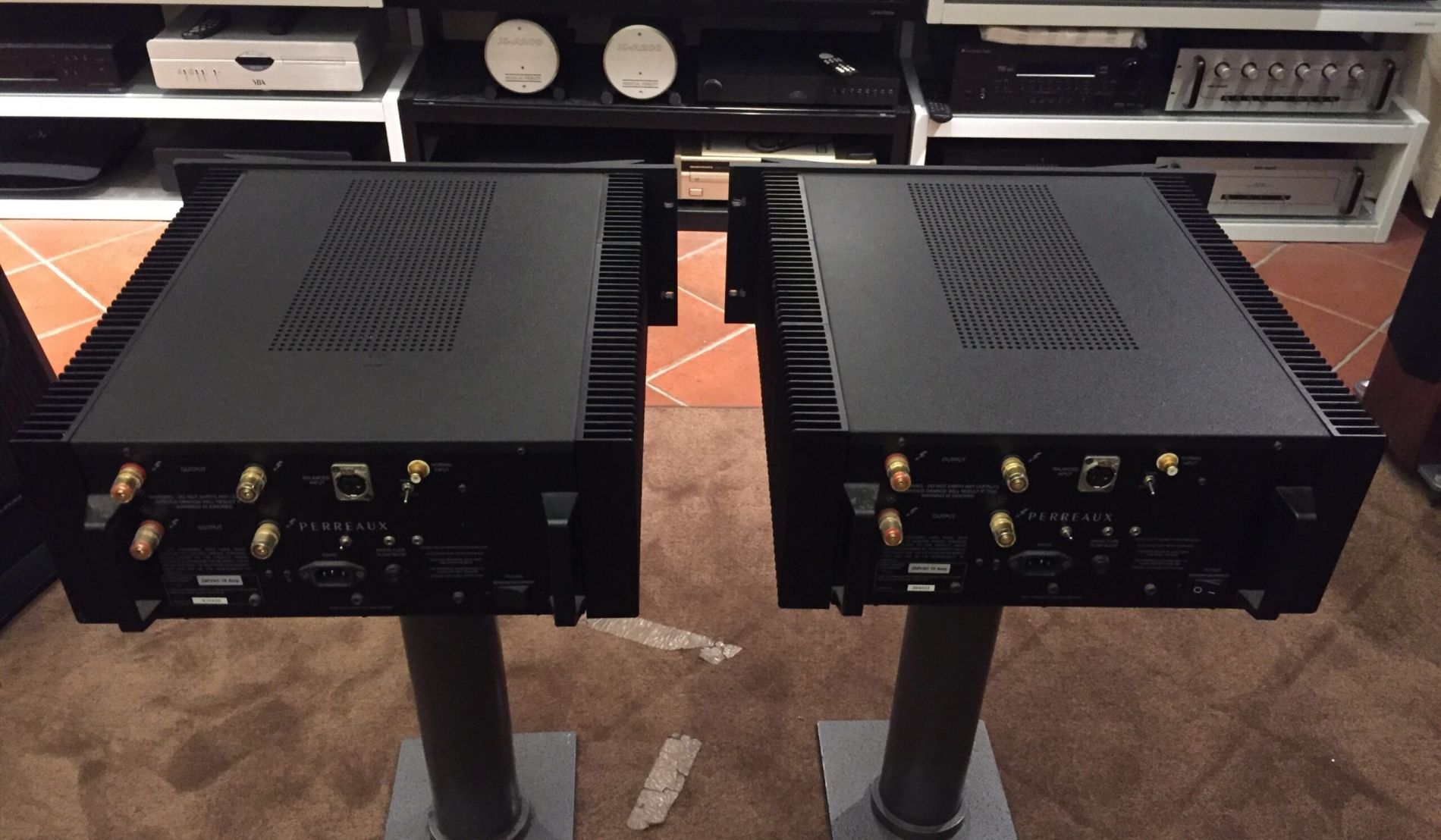

Audio Inputs……………………………….Unbalanced: 1 x RCA connector
……………………………….Balanced: 1 x XLR connector
Audio Outputs:……………………………2 x pairs of speaker binding posts
Other Connections……………………….1 x IEC AC mains input receptacle
……………………….1 x 3.5mm “mini” jack for master remote input, 5 to 12V DC
……………………….1 x 3.5mm ‘”mini” jack for slave remote output, 12V DC
Power Consumption……………………..Idle: 65W
……………………..Maximum: 1400W, at 45 rated output
Mains Input Voltage……………………..100V, 110V, 120V, 220V, 230V or 240V AC at 50Hz or 60Hz
……………………..Set within the 750 at time of manufacture
Mains Input Fuse Ratings……………..100 to 125V: 2SB slow blow 15A
……………..200 to 250V: 2SB slow blow 10A, user serviceable
Internal DC Rail Fuses………………….4 x 2AG normal blow 10A, not user serviceable
Dimensions(w x d x h)………………….48.5 x 53 x 19.5 cm
Weight……………………………………..30kg per side
Miscellaneous :
XLR Inputs…………………………………Yes
Made In…………………………………….New Zealand
Condition…………………………………..7/10
