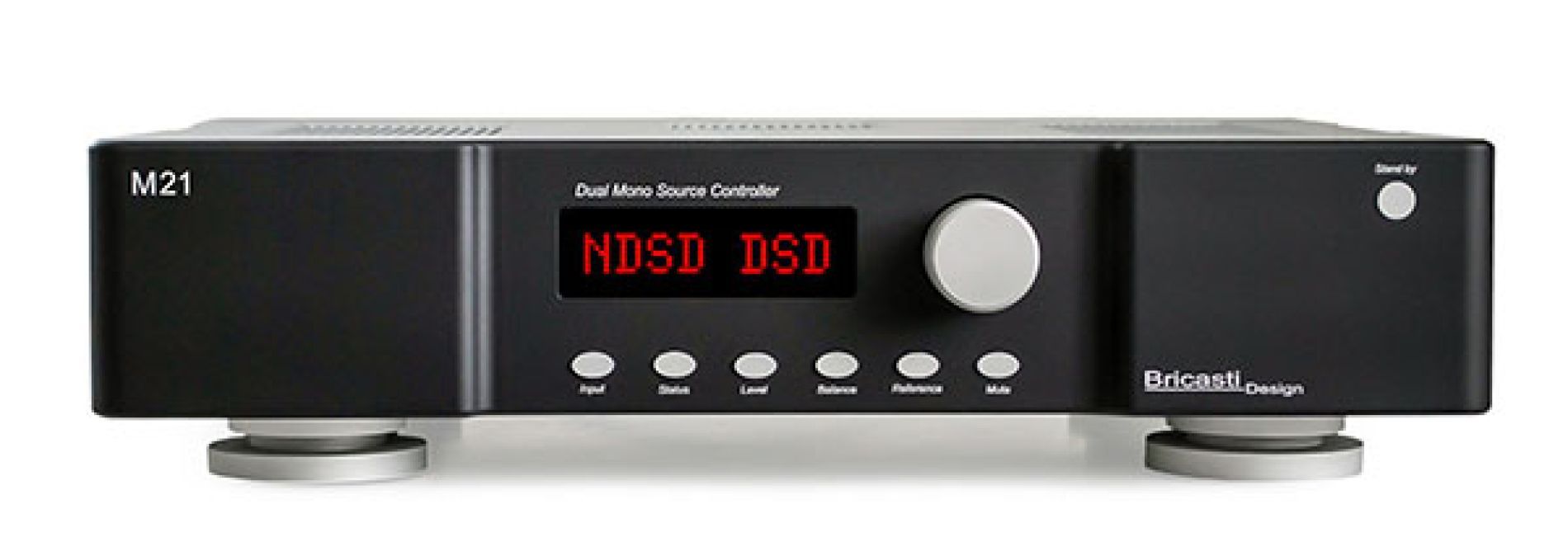

M 21

Bricasti M21 Specifications:
Price: $16,000

Front Panel Overview

Front Panel has a large, simple easy to read display
Front panel Power stand-by switch
I.R. receiver built in for remote control operation

Rear Panel Overview

Left and right analog output section
6 digital audio inputs (AES, SPDIF 1 and 2, Toslink, USB, and RJ45)
Power connection
Rear panel mounted circuit breaker

Operating Overview

Input Select
- IN1 AES, Selects the XLR connector
- IN2 SPDIf Selects the RCA SPDIF connector
- IN3 EIAJ Selects the Toslink connector
- IN4 USB Selects the USB connector
- IN5 LAN and network streamer
- IN6 SPDIF 2 Selects the BNC connector

Digital Oversampling Filters for PCM conversion

Minimum Phase
Linear Phase
Delta Sigma 8 x oversampling conversion

The M21 Remote

Dedicated infrared remote control
Six button operation
Palm-sized for easy operation

General Specifications

Anodized Aluminium
Dimensions 17” x 12” x 4.5”
Weight 15 lbs
Shipping Weight 18 lbs

Mains Voltage

100, 120, 220, 240 VAC
Power Consumption 30 Watts
Warranty Parts and Labor 2 years non-transferable
Roon Ready

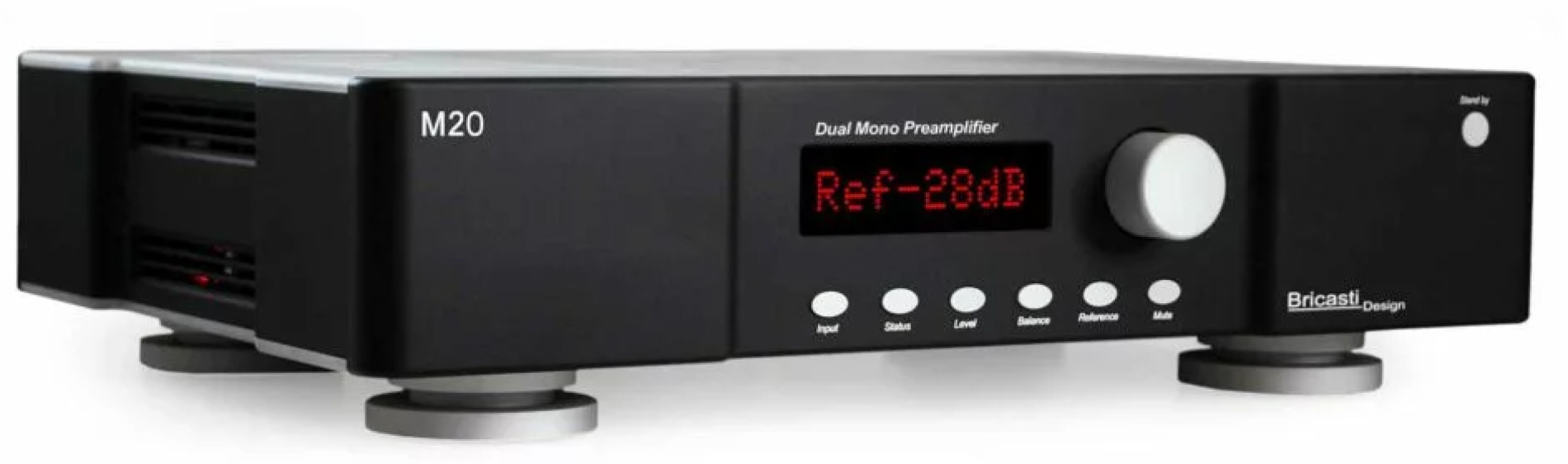

M 20

Balanced Analog Inputs/Outputs	2 XLR balanced (pin 2 hot)
Unbalanced Analog Input/Output	1 RCA
THD+N	0.0007% 20-20k typical
Max input level	+20 dbu Balanced
Max output level	+23 dbu Balanced, +16 dbu unbalanced
Input impedance	200k ohm
Crosstalk	> 120db
Trigger out	TRS mini jack, 5V ring, ground Bp
Attenuator	90 db in 1 db steps from 0 to -89db.

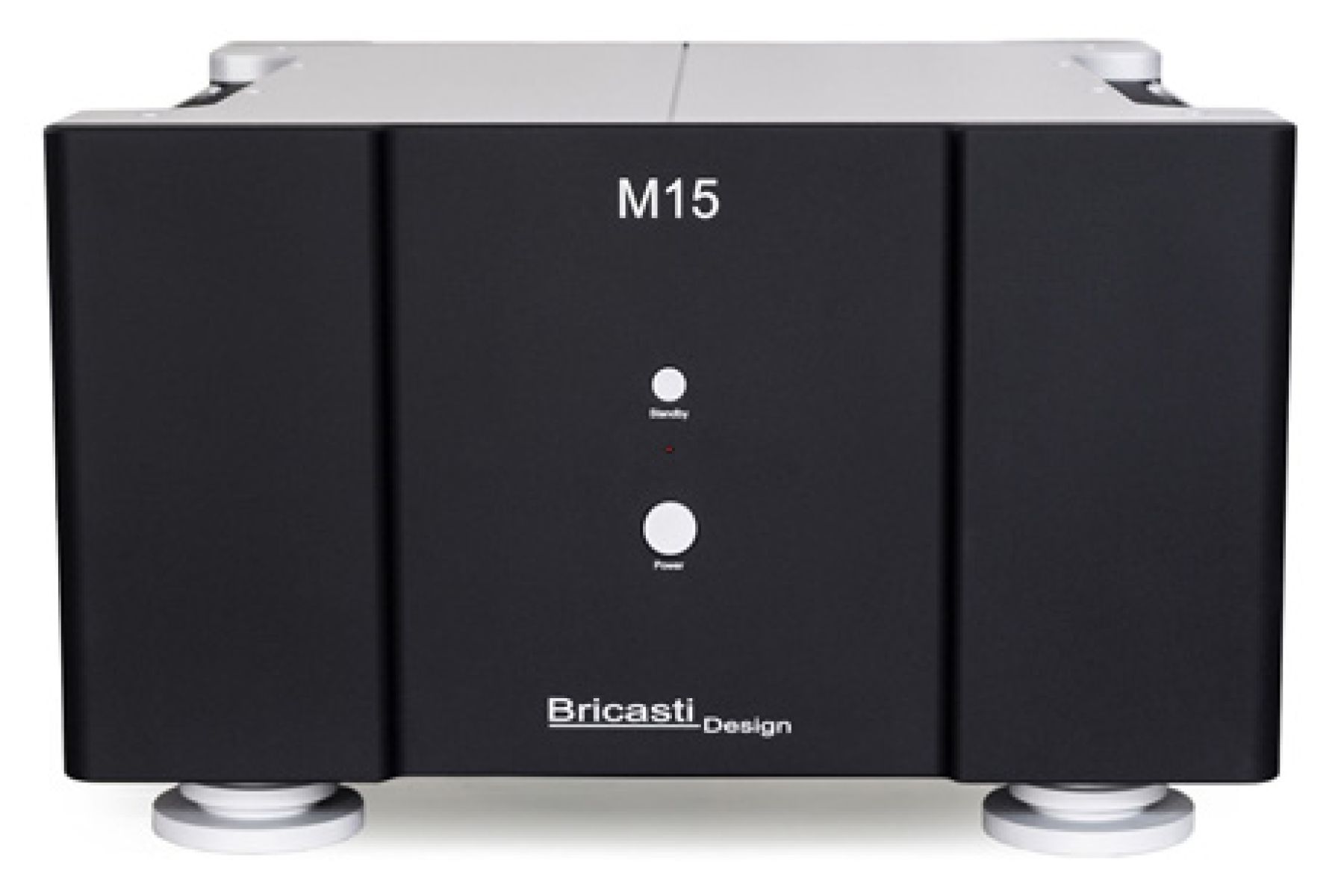

M 15

Specifiche tecniche:

Distorsione armonica: THD + N inferiore allo 0,005% 20Hz-20kHz a piena potenza nominale in 8 e 4 ohm.

Potenza: 125 W in 8 ohm, 250 W in 4 ohm, 500 W in 2 ohm.

Risposta di frequenza: 10hz-150kHz, entro 0,5 dB.

Segnale rumore: maggiore di 85 dB a piena potenza nominale.

Topologia di potenza: completamente differenziale.

Finitura Alluminio anodizzato.

Tensione di rete impostata in fabbrica: 100, 120, 220, 230, 240 V CA, 50 Hz – 60 Hz.

Trigger In: connettore TRS per trigger esterno 5V.

Input Trim: 0db, -6db, -12db, -18db dell’attenuazione.

Consumo energetico: 60 W in standby, 2 W inattivo.

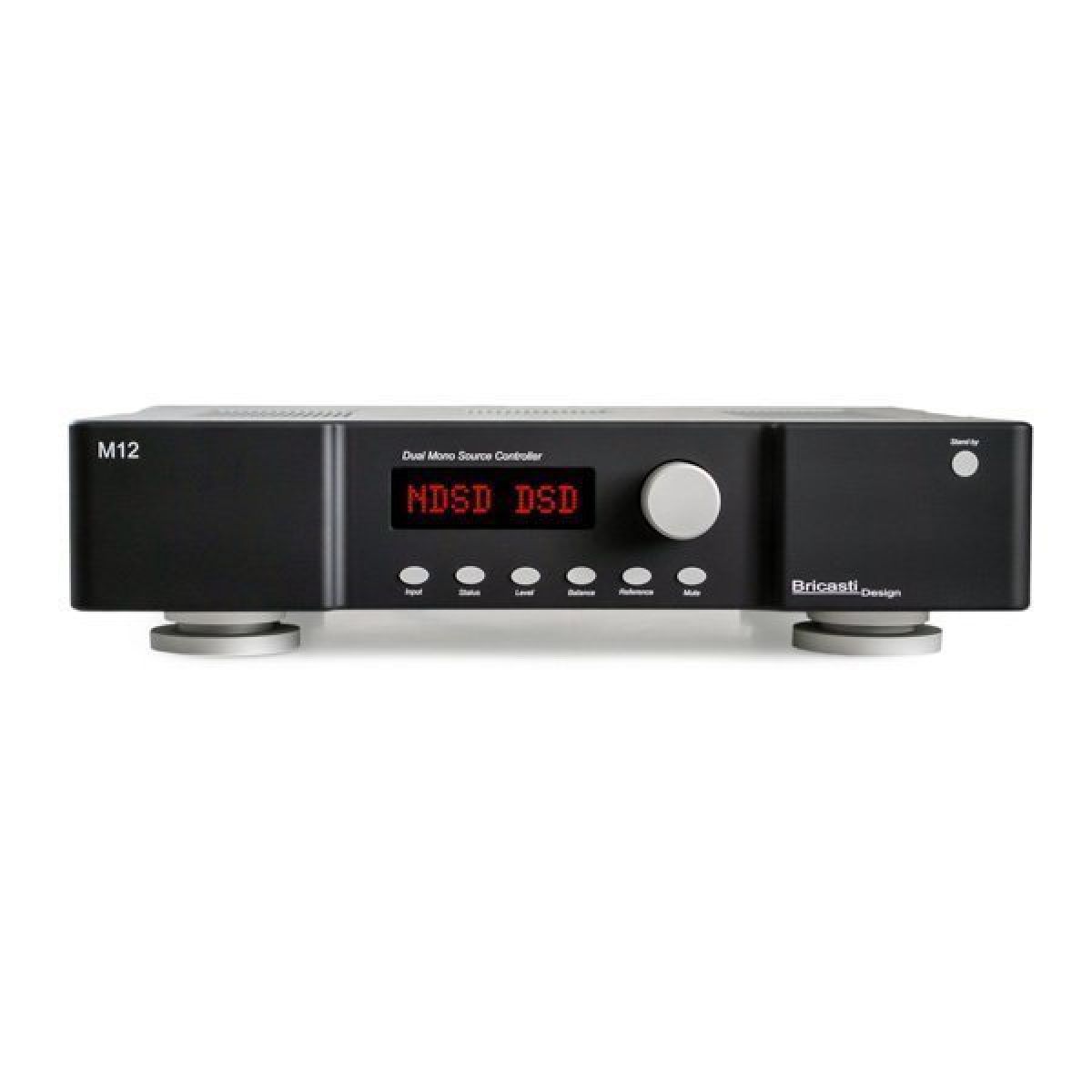

M 12

Technical Specs

Digital Inputs	XLR: AES/EBU 24 bit Single Wire, BNC: SPDIF, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2
Sample Rates AES, SPDIF, AUX in	44.1 kHz, to, 192khz
Sample Rates USB	44.1 kHz, to, 384kHz, DSD 64fs 128Fs as DoP
Sample Rates Ethernet	44.1 kHz to 384kHz, DSD 128
Jitter	8 psec @ 48k / 6psec @ 96k

Balanced Analog Outputs	XLR balanced (pin 2 hot)
Impedance	40 ohm
Output	@ full scale +16.5 dbm (5.2V RMS)
Output Level	90db in 1 db steps
D/A Conversion	PCM 24 bit delta sigma 8x oversampling, DSD direct 1 bit
Frequency Response @44.1k	10 hz- 20 kHz +0dB, -.2 dB
Dynamic Range	>120dB A-Weighted
THD+N @ 1k	.0008% @ 0dbfs / .0004% @-30dbfs

Unbalanced Analog Outputs	RCA
Impedance	40 ohm
Output level	Full scale at front panel +6 dbm (1.2V RMS)
D/A Conversion	24 bit delta sigma 8x oversampling
Frequency Response @ 44.1k	10 hz- 20 kHz -.2 dB
Dynamic Range	>120dB A-Weighted
THD+N @ 1k	.0008% @ 0dbfs / .0004% @-30dbfs

General Specifications	EMC: Complies with: EN 55103-1, EN 55103-2, FCC part 15 and Class B
RoHS	Complies with: EU RoHS Directive 2002/95/EC
Safety	Certified to: IEC 60065, EN 55103-2
Operating Temperature	32 F to 105 F (0 C to 40 C)
Storage Temperature:	-22 f to 167 F (-30 C to 70 C)
Finish	Anodized Aluminum
Dimensions	17” x 12“ x 4.5”
Weight	15 lbs
Shipping Weight	18 lbs
Shipping Dimensions	22”x 17”x 7”
Mains Voltage	-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
Trigger out	TRS connector for 5V external trigger.
Power consumption:	28 Watts (6W standby)
Warranty parts and labor	2 yrs non-transferable.

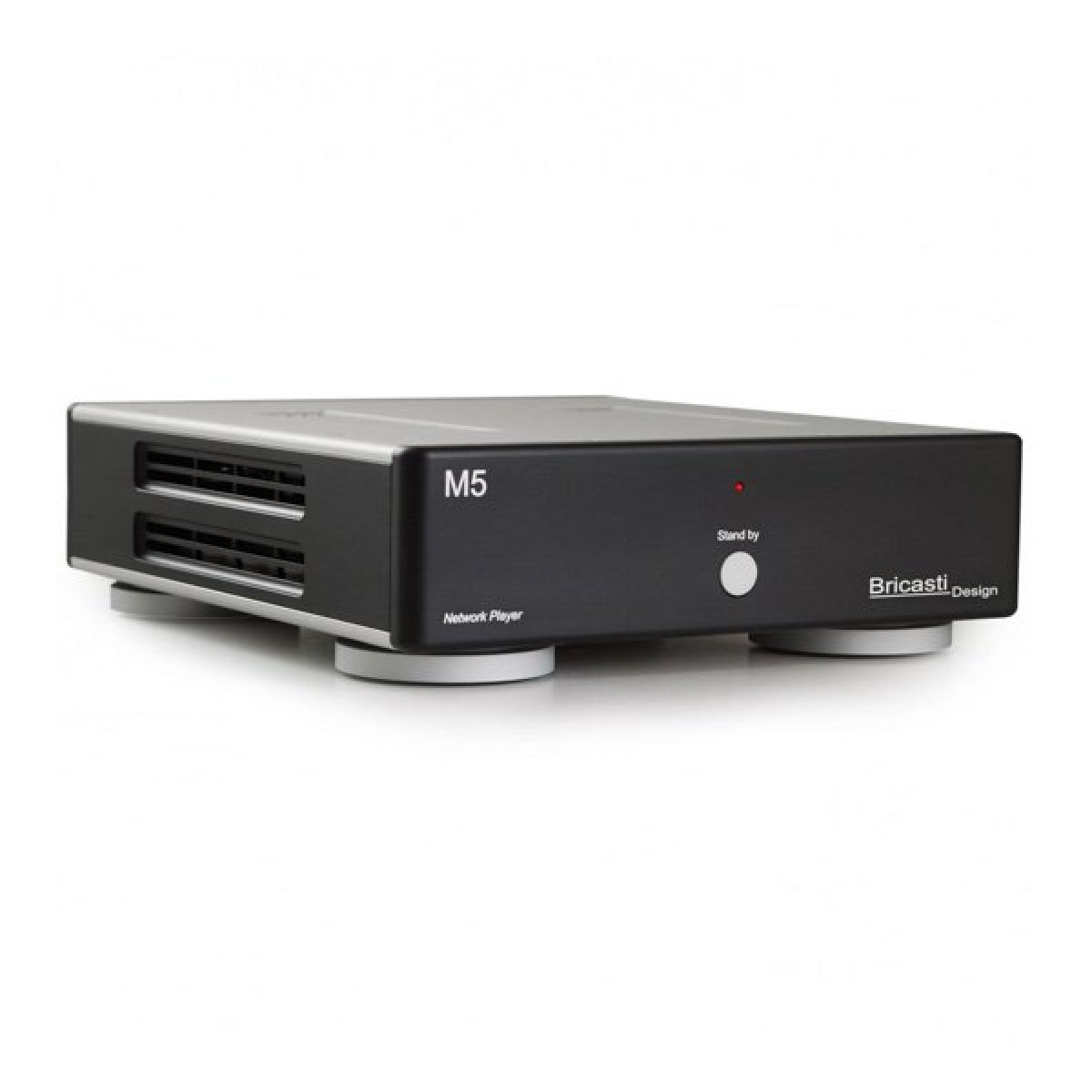

M 5

Descrizione

Input	Wired Ethernet.
Output	AES, standard SPDIF, RCA or optional 75 ohm BNC up to 192k PCM and DSD 64. DSD 128 over USB.
Supported Formats	Over 100 different file types including: AAC, AIFF, ALAC, ATRAC, Au, AVI, Dolby Digital, DSDiff, DSF, DV, DVD, FLAC, FLV, IFF, M1V, M2T, M2V, M4A, M4V, Matroska, MJPEG, Monkey’s Audio, MP1, MP2, MP3, MP4, MPC, Music Tracker files, Ogg, OpenMG, Opus, Quicktime, RealMedia & RealAudio, Sidplayer files, Speex, SWF, video game media files, W64, WAV, WMV & WMA, Xvid, 3GPP & 3GPP2.
Trigger In	250ma.
Trigger Out	12V.
Weight	5 lbs.
Shipping Weight	6 lbs.
Mains Voltage set at factory	100, 120, 220, 230, 240 VAC, 50 Hz – 60 Hz.

M 3

Specifiche tecniche:

IINGRESSI DIGITALI:
Connettori: XLR: AES/EBU 24bit Single Wire
RCA: SPDIF
Ottico: Toslink 44.1- 96k
USB: USB 2
RJ45: Ethernet
Frequenze di campionamento AES, SPDIF: 44.1-192kHz, DSD 64Fs DoP
Frequenze di campionamento USB: 44.1-384kHz, DSD 64fs, 128Fs DoP
Frequenze di campionamento Ethernet: 44.1-384kHz, DSD 64Fs,128Fs DoP
Jitter: 8 psec @ 48K / 6psec @ 96K

USCITE ANALOGICHE BILANCIATE:
Conversione D/A: PCM 24 bit delta sigma 8x oversampling
NDSD conversione 1 bit pura per DSD
Connettori: XLR bilanciati (Positivo: pin 2)
Impedenza: 40 ohm
Livello di uscita: @ 0 dB pannello frontale +14.3 dbm 4 db RMS (modalità bypass)
Risposta in frequenza @44.1k: 10 Hz- 20 kHz +0dB, -.2 dB
Dinamica: >120dB pesata A
THD+N @ 1k: .0008% @ 0dBfs / .0004% @-30dbfs

USCITE ANALOGICHE SBILANCIATE:
Conversione D/A: PCM 24 bit delta sigma 8x oversampling
NDSD conversione 1 bit pura per DSD
Connettori: RCA
Impedenza: 40 ohm
Livello di uscita: @ 0 db pannello frontale = + +4dB 2V RMS (modalità bypass)
Risposta in frequenza @44.1k: 10 Hz- 20 kHz, -.2 dB
Dinamica: >120dB pesata A
THD+N @ 1k: .0008% @ 0dBfs / .0004% @-30dbfs

GENERALI:
Finitura: Alluminio Anodizzato
Dimensioni: 356 x 286 x 64 mm
Peso: 4.5 Kg
Dimensioni di spedizione: 508 x 356 x 127 mm
Voltaggi: 100, 120, 220, 240 VAC, 50-60 Hz regolati in fabbrica
Consumo: 20W

M 1 SII

ingressi USB 2.0, AES/EBU, S/PDIF, Toslink
Ingresso Ethernet (opzionale) Roon Ready, certificato Roon
Formati USB/Ethernet accettati: 44,1 kHz - 384 kHz, DSD 256x Native e DoP
S/PDIF: 44,1 kHz - 192 kHz, DSD128 DoP
Toslink: 44,1 kHz - 96 kHz
Filtri digitali 9 Filtri a fase lineare
6 Filtri a Fase Minima
Convertitore ADI1955, 1 pezzo per canale
24 bit, delta-sigma, sovracampionamento 8x, jitter < 6ps
Uscite RCA/XLR Risposta in frequenza @44,1k: 10 Hz - 20 kHz +0 dB, -0,2 dB
Gamma dinamica: >120dB ponderato
THD+N a 1k: 0,0006% a 0dbfs / 0,0004% a -30dbfs
Dimensioni 43,18 cm x 30,48 cm x 11,43 cm
Peso 7,7 kg
