Peachtree220 Backstage Pass

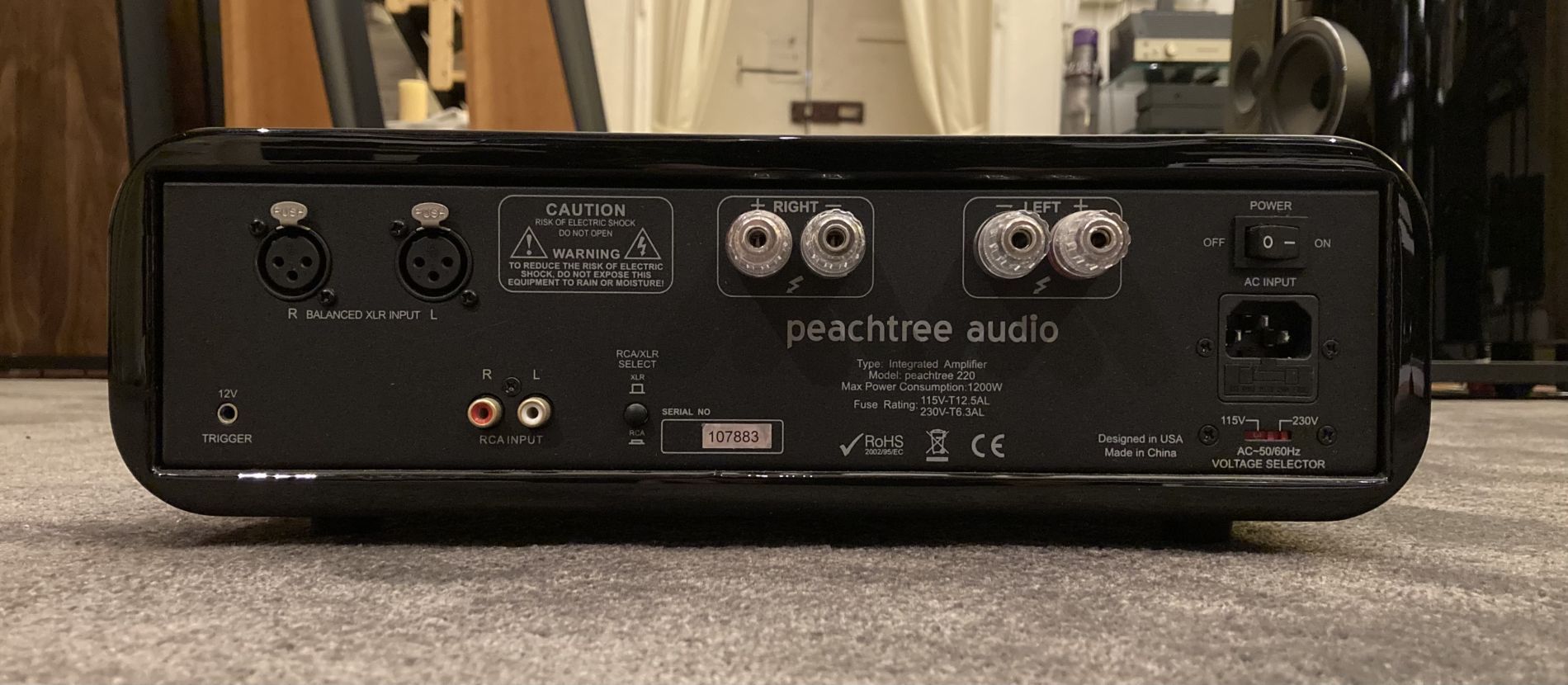

1) Trigger: Automatically turns on amp from preamp.

2) Line In 1: Balanced

3) Line In 2: RCA

4) Speaker Terminals: 5 way binding posts. Spades, banana plugs or raw speaker wire

5) Standby Switch: Turns mains on and off.

6) Detachable Power Cord

7) Voltage Switching: For international use.

Dynamic Range: 121dB

Sensitivity: 1.2v

Input Impedance:
Balanced 100 kΩ
Unbalanced 50 kΩ

Output Impedance: 18 mΩ

Minimum Load: 3 ohms

Damping Factor: >1000 (100Hz 8Ω)

Max Output Current: 30A

Crosstalk: >90dB 20Hz-20kHz

Power Consumption:
.6 watts idle
1200 watts maximum

Dimensions: 4.37 x 14.8 x 11.5 (inches)

Warranty: 2 years parts and labor
