Caratteristiche tecniche:
SYSTEM: 3 way floorstanding vented box loudspeaker.

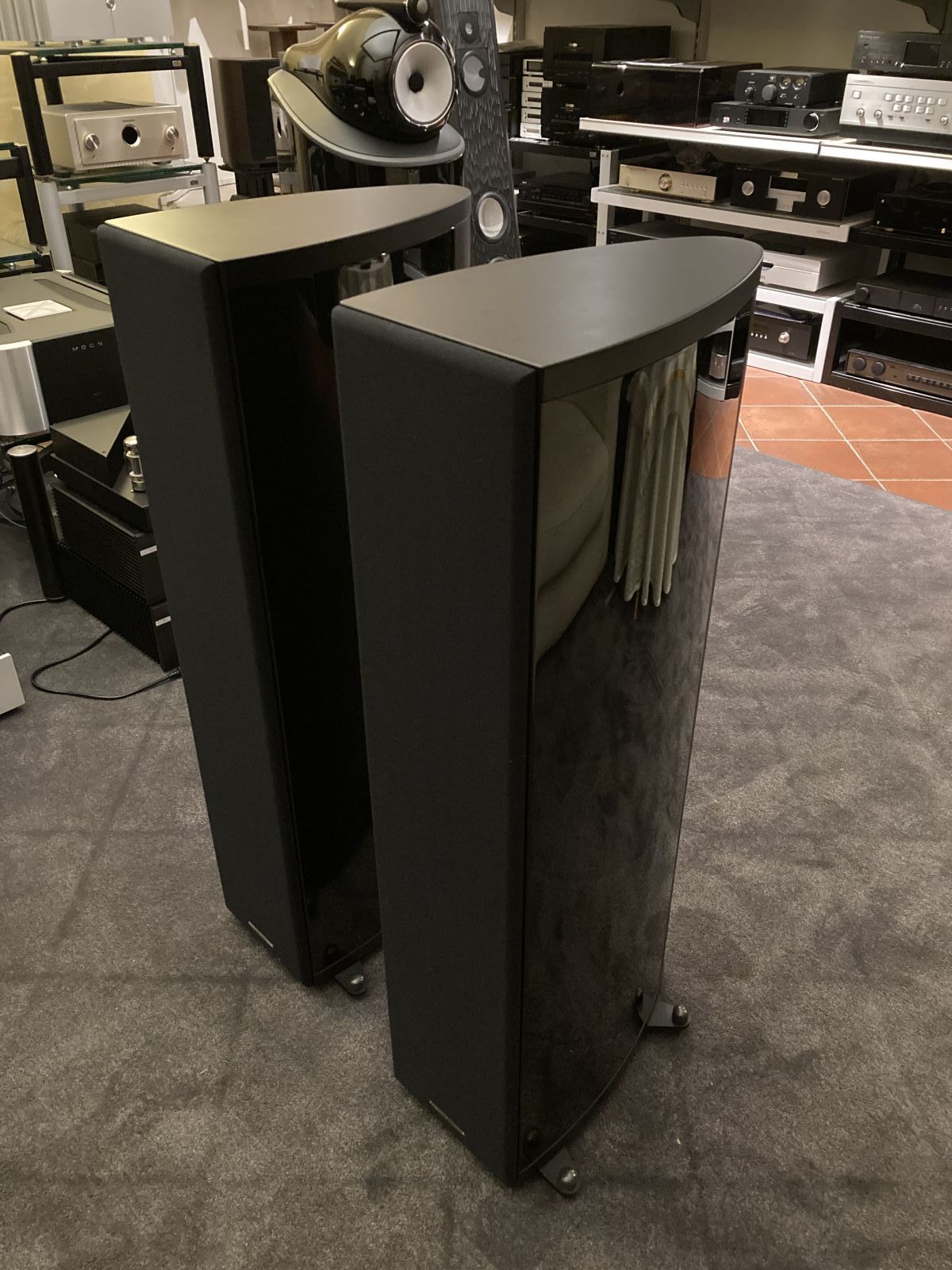

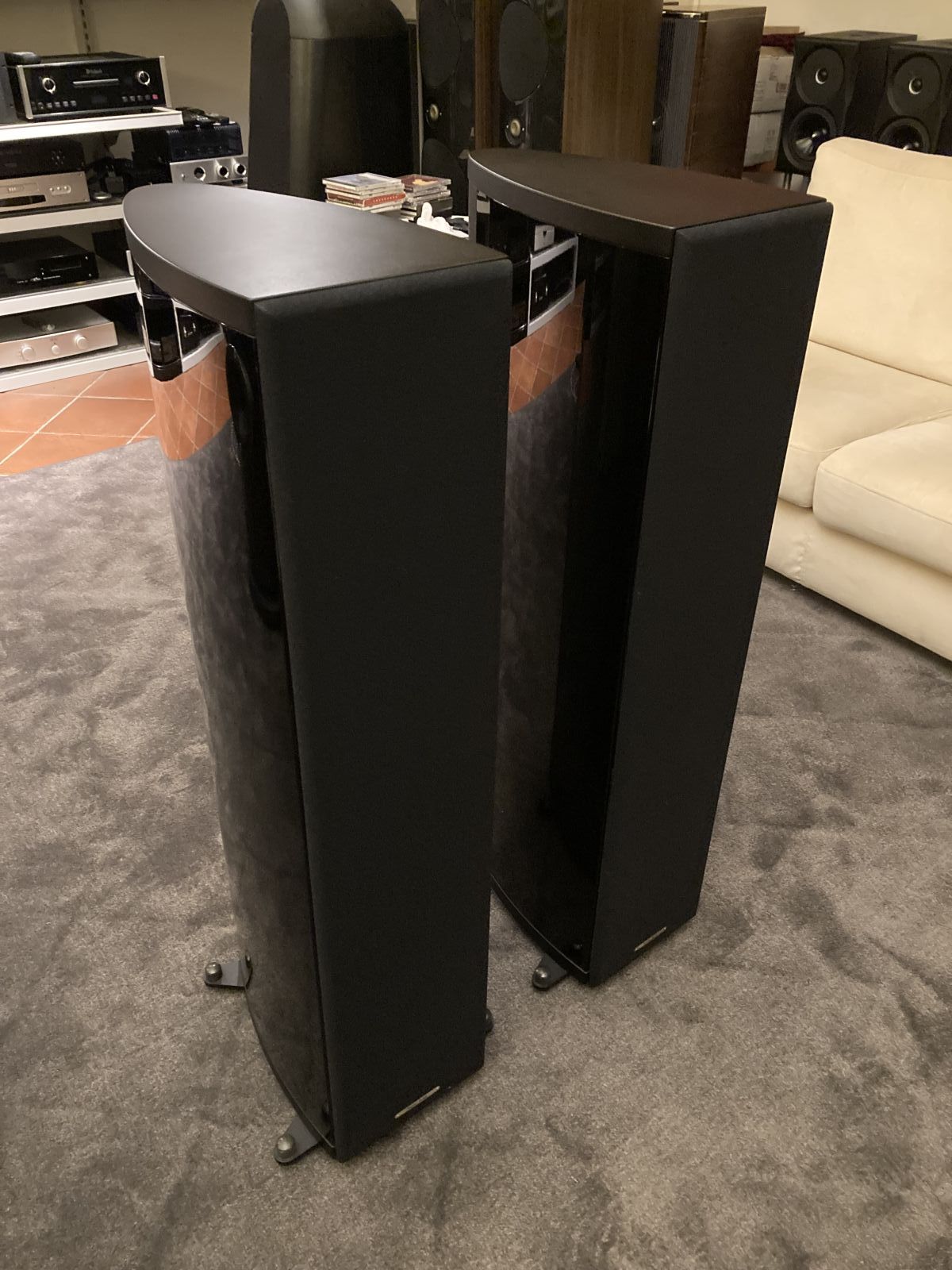

CABINET: Lute shape design ensures excellent stiffness avoiding
resonances and standing waves. Sub-structural ribs are
strategically placed for absolute rejection of spurious vibrations.

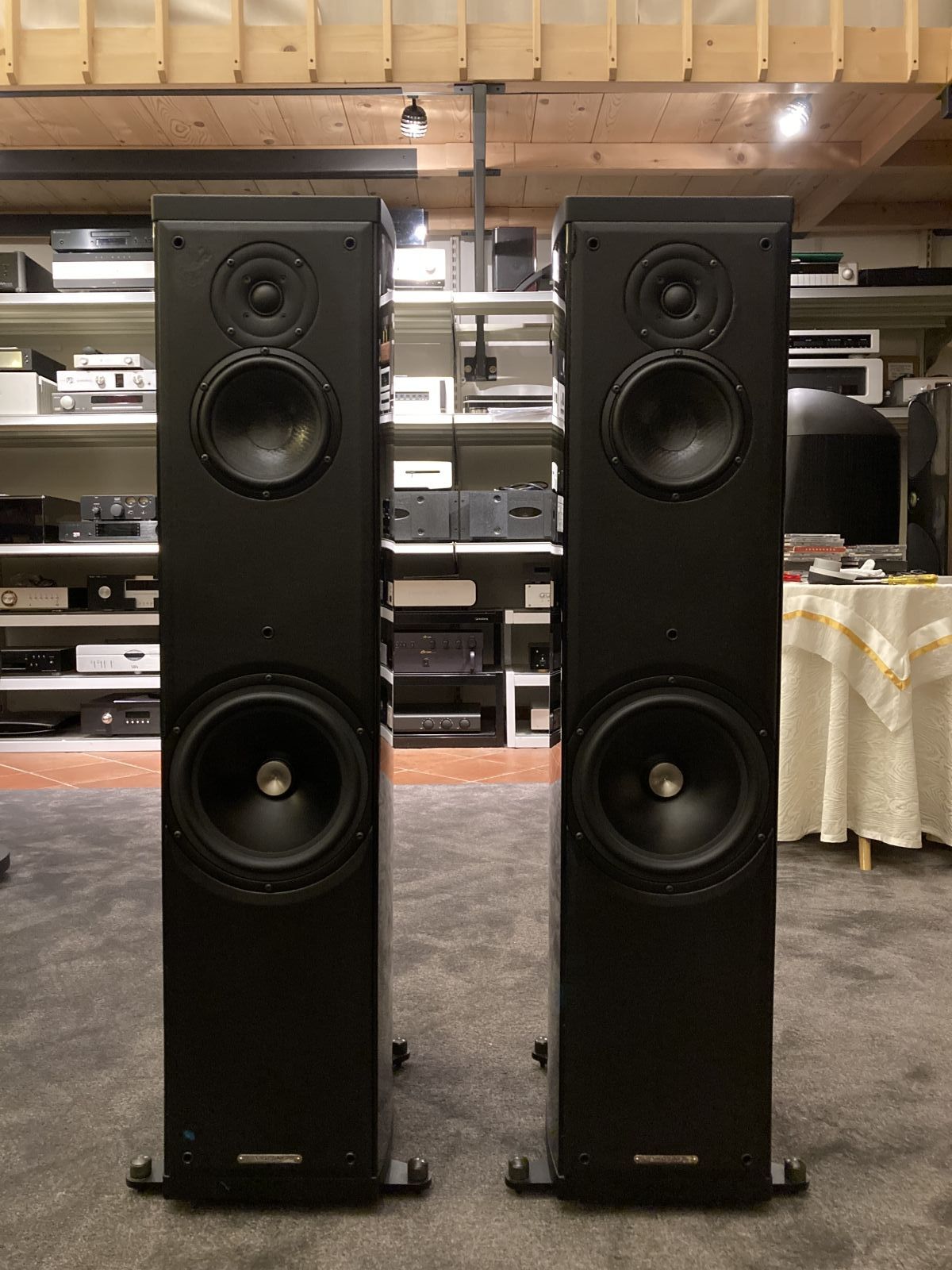

TWEETER: 25 mm high definition precoated fabric dome driver with
wide soft polymer surround and rear chamber. Custom design.
MIDRANGE: 150 mm cone driver. A free compression basket design
and a thermo-mouldered polypropylene textile cone, also known as
“curv”, ensures an excellent dynamic performance. Custom design,
synergistically optimized with its acustic chamber.
WOOFER: 220 mm lightweight Aluminum/Magnesium alloy cone
driver. Ultra dynamic performance and linearity. Special coaxial anti-
compressor is used, designed to remove cavity resonances and
distortions.
CROSS-OVER: Non-resonant second order design, optimized phase
characteristics for optimal space/time performance, cross-over
points 350 Hz – 3.500 Hz.

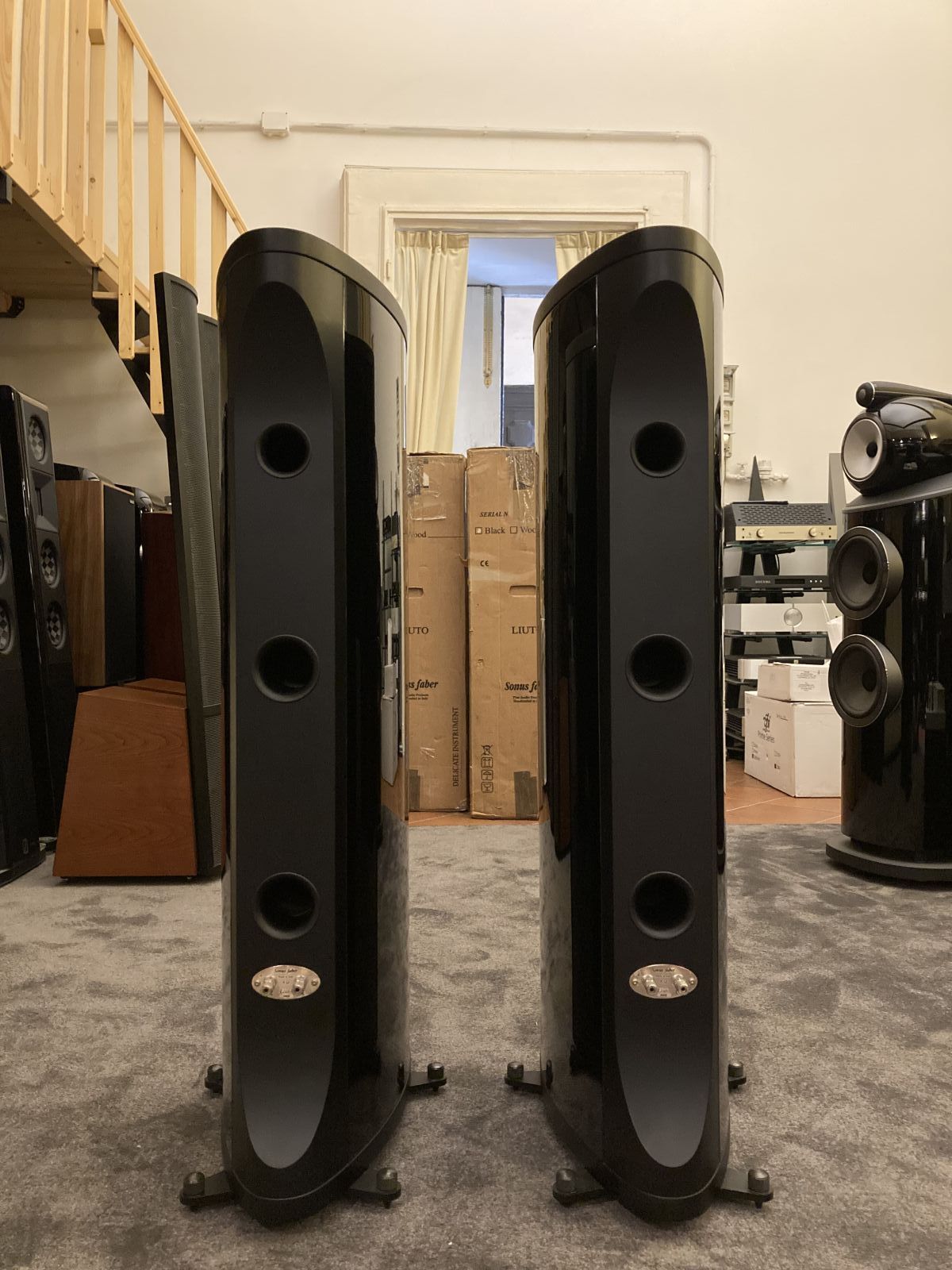

FREQUENCY RESPONSE: 40 Hz – 25.000 Hz, tuning ports included.
SENSITIVITY: 89 dB SPL (2.83 V/1m).
NOMINAL IMPEDANCE: 8 ohm.
POWER HANDLING: 40W – 250W without clipping.
FINISH: Combination of black leather and natural walnut.
DIMENSIONS: 1040 x 236 x 415 mm (HxWxD).
WEIGHT: 62.8 Kg per pair – net weight/ 75 Kg per pair – shipping
weight.
