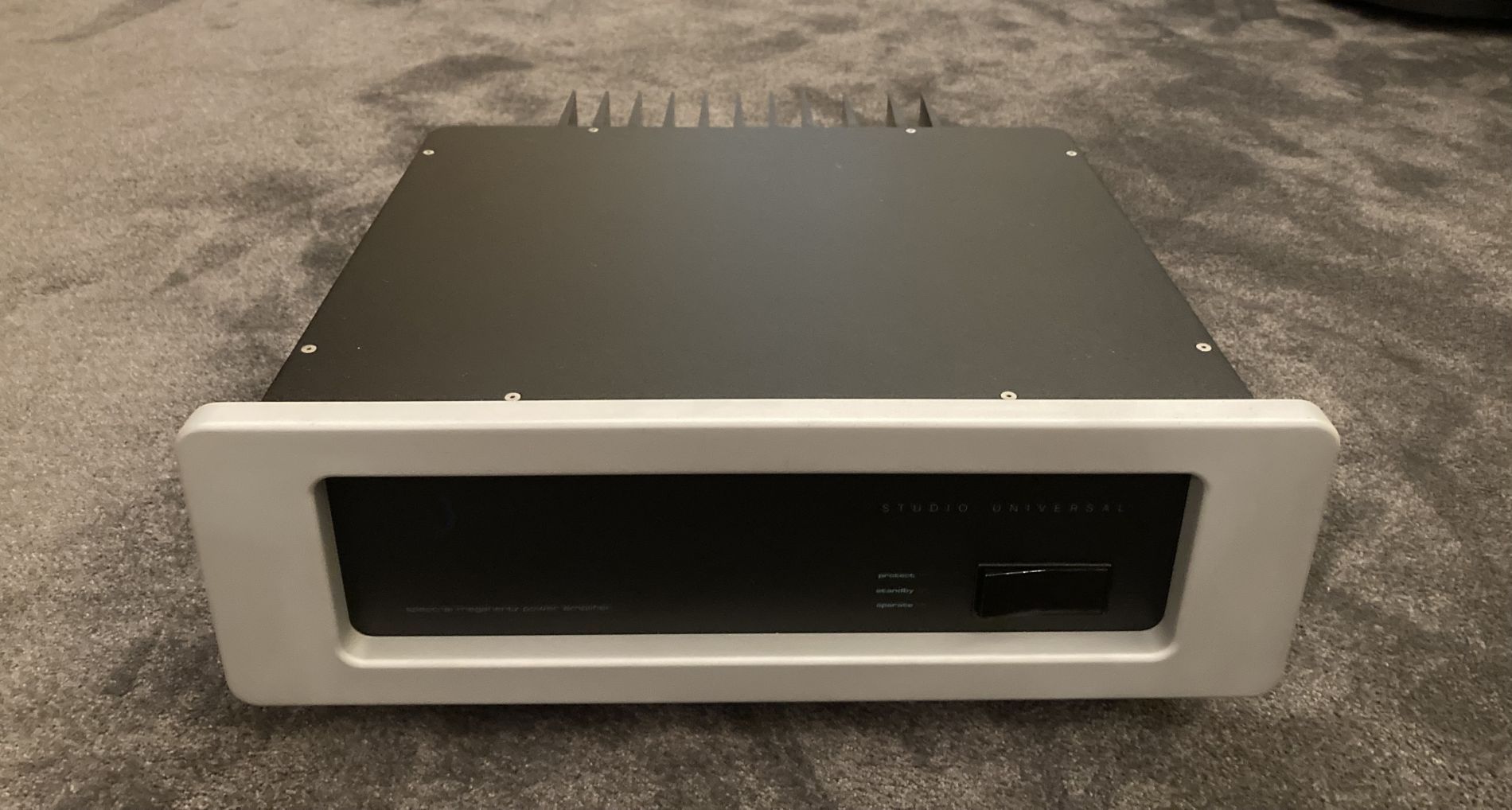

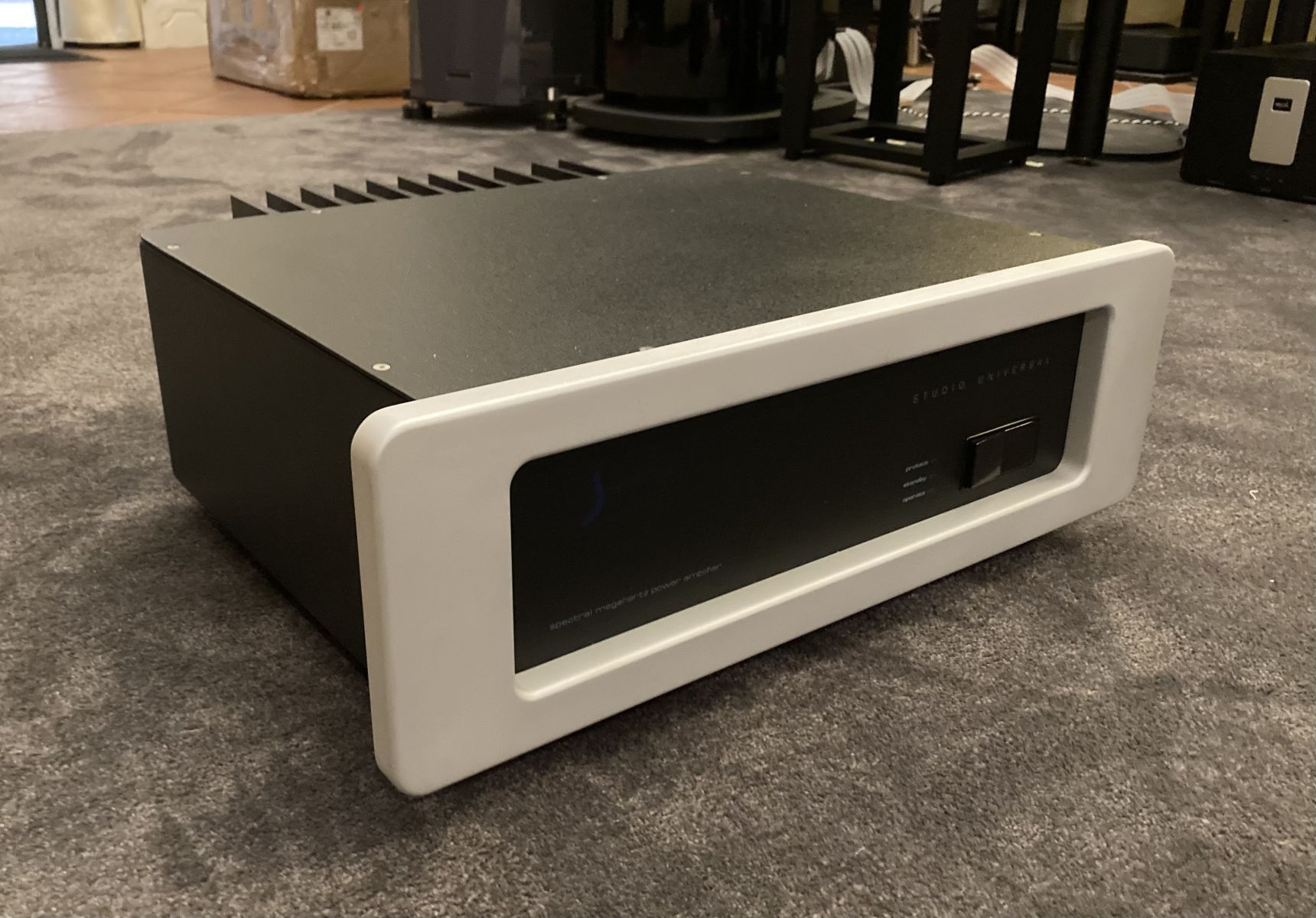

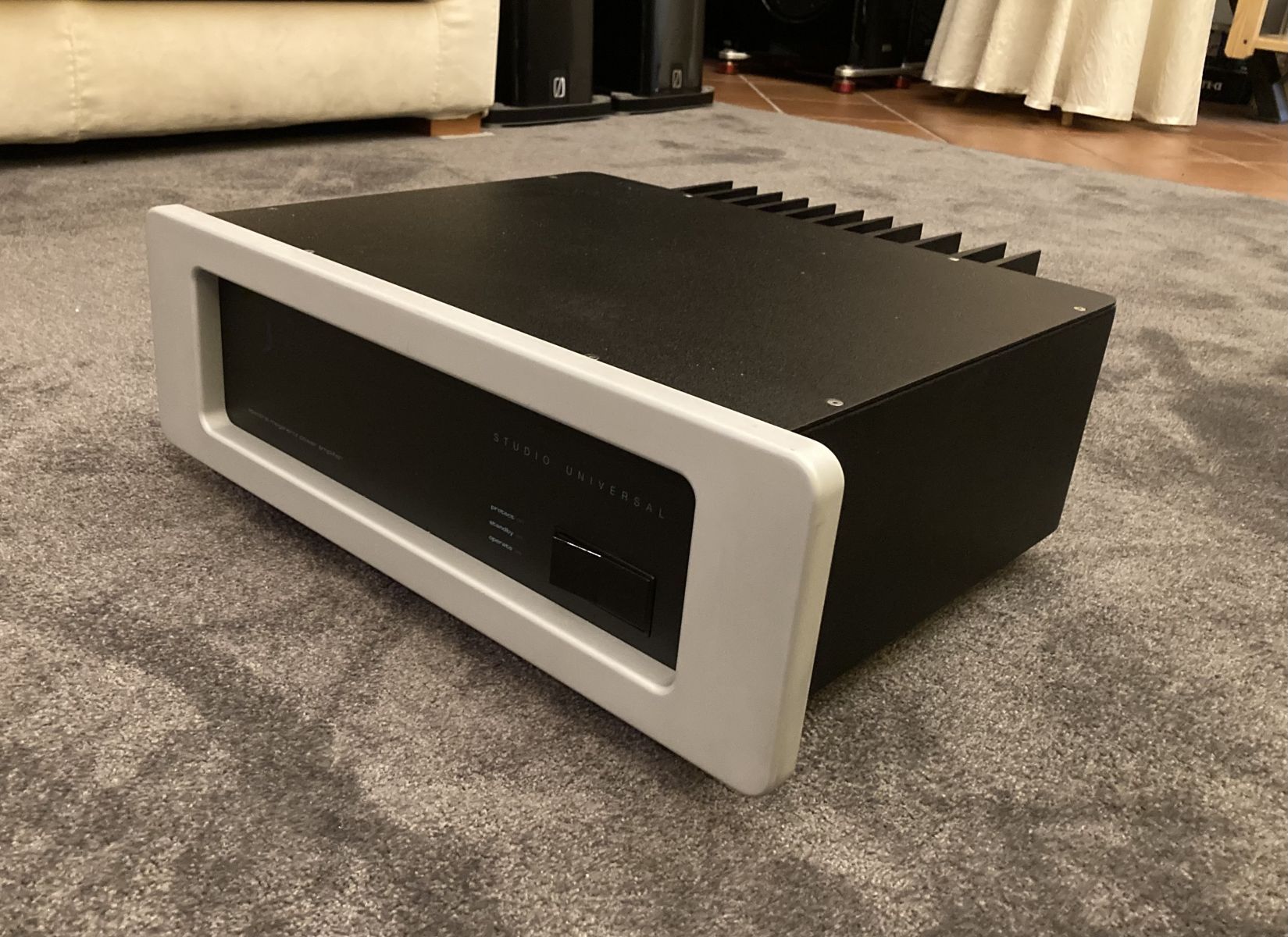

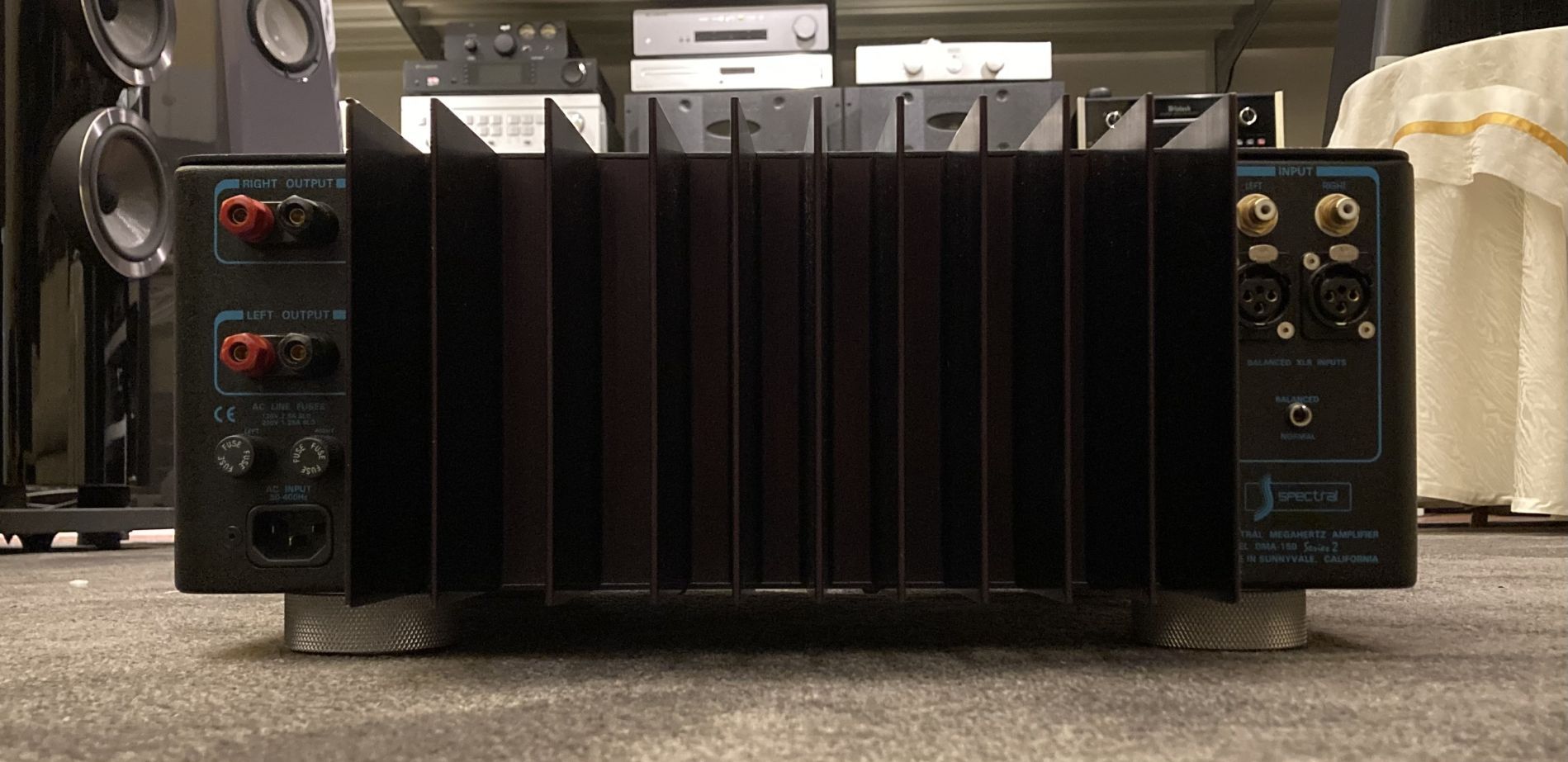

SPECTRAL DMA-150 S2 STUDIO UNIVERSAL

€4.000,00



Descrizione:

DMA-150 Stereo Power Amplifier



Power Output:
(continuous)

@ 8 ohms – 150 Watts RMS
@ 4 ohms – 300 Watts RMS
@ 2 ohms – 570 Watts RMS


Output Current:

60 Amps peak per channel


Frequency Response:

±0.1 dB, DC-150 KHz
±1 dB, DC-1 MHz
±3 dB, DC-1.8 MHz



Distortion:

Less than 0.015% from DC to 100 KHz, typically 0.009% @ 200 WRMS/8 ohms


Dynamic:
8 Tone Cluster Test 20 KHz @ 500 Hz separation; 0.01% 8 ohms; 0.015% 4 ohms


Rise Time:

Less than 400 nanoseconds


Settling:
1.5 microseconds to -40dB


Slew Rate:
600 volts/microsecond


Signal to Noise:

97dB unweighted, 107dB ASA A


Crosstalk:
98dB @ full power 8 ohms


Impedence:

100K ohms in parallel with 100 pf


Sensitivity:
1.5 volts/nominal output


Line Voltage:

100 volts, 120 volts, 240 volts (factory set)


AC Voltage Range:
±10%


Maximum Consumption:
1600 Watts


Quiescent Consumption:
250 Watts



Operating Temp:

0° to 50° Celsius range; 32° to 122° Farenheit


DC Protection Servo:

0.5 volt range


Current Limit Onset:
60 Amps


Thermal Threshold:
Protects at 85° Celsius, 185° Farenheit


AC Main Fuses:

2 @ 2-1/2A 3 AG slo-blo, for 100 – 120 VAC
2 @ 1-1/4A 3AG slo-blo, for 220-240 VAC


Dimensions:

48.22cm (19″)W x 18.4cm (7 1/4″)H x 45.8cm (18″)D


Weight:
62 lbs, 28.1 KG Net
