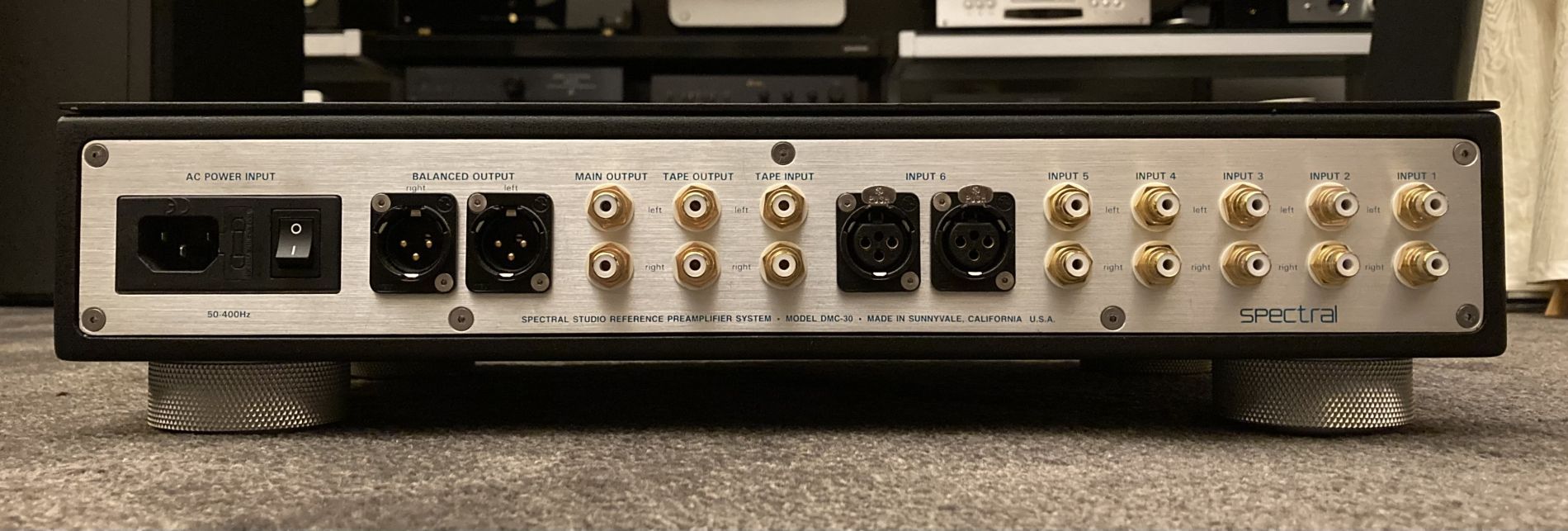

Input Compliment: 7 inputs
Output Compliment: 3 outputs - normal, balanced, tape
Input Impedance: 15k ohms
Input Attenuation: 0, -12 dB
Output Impedance: 100 ohms
Output Attenuation: Motorized fader conductive plastic, modified log taper
Output Balance: Relay attenuator system with center position bypass
Mute Switch: 0, -20 dB attenuation
Mode switches: Stereo/mono, absolute phase
Input Selections: 6 plus tape monitor
Chassis Temperature: Internal 40 deg. Celsius @ 25 deg. room temp
Weight: 26 lbs. (11.8 KG)
Dimensions: 4 1/10"H x 19"W x 12 1/4"D (10.4 cm x 48.3cm x 31.1cm)
