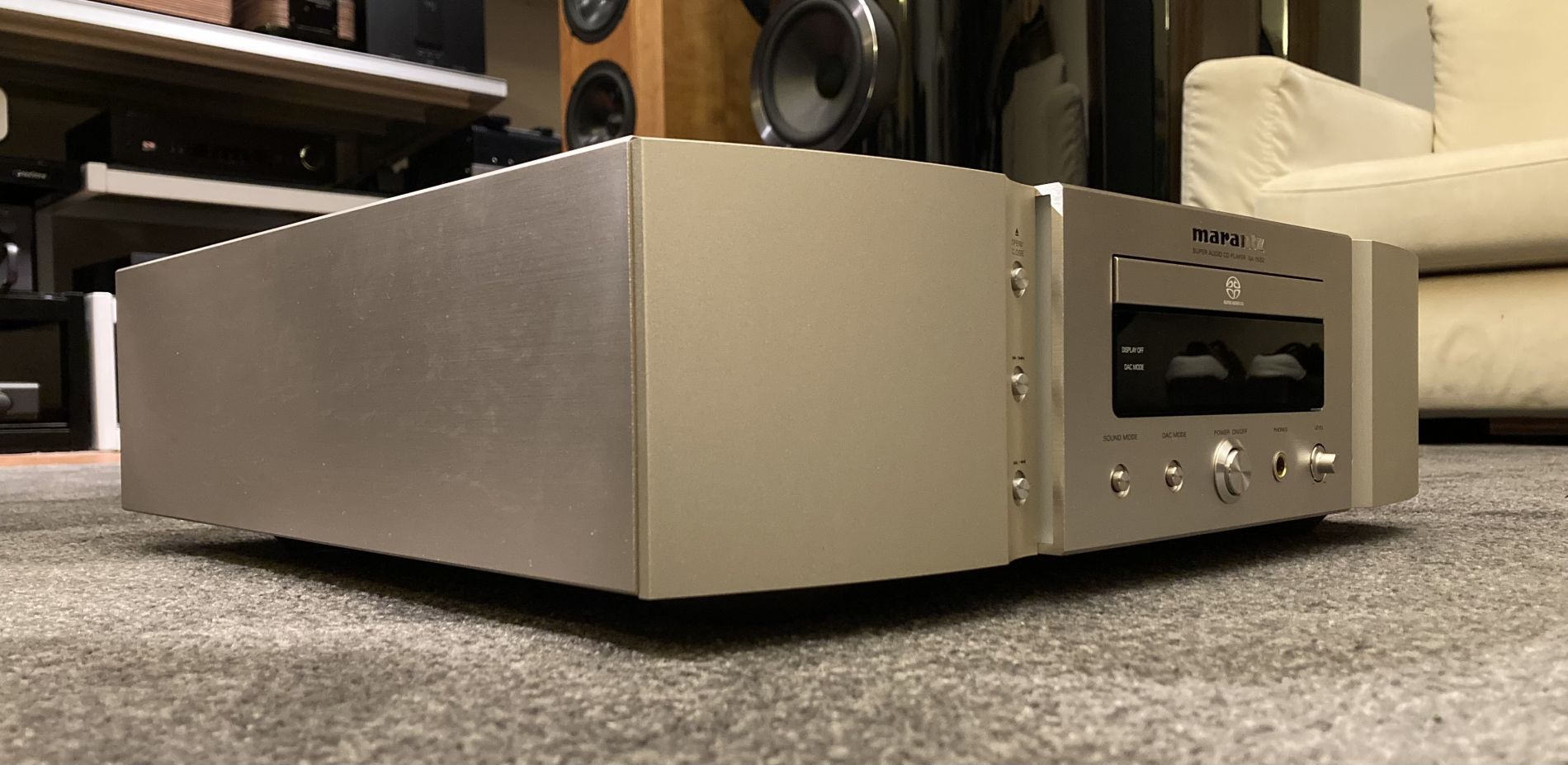

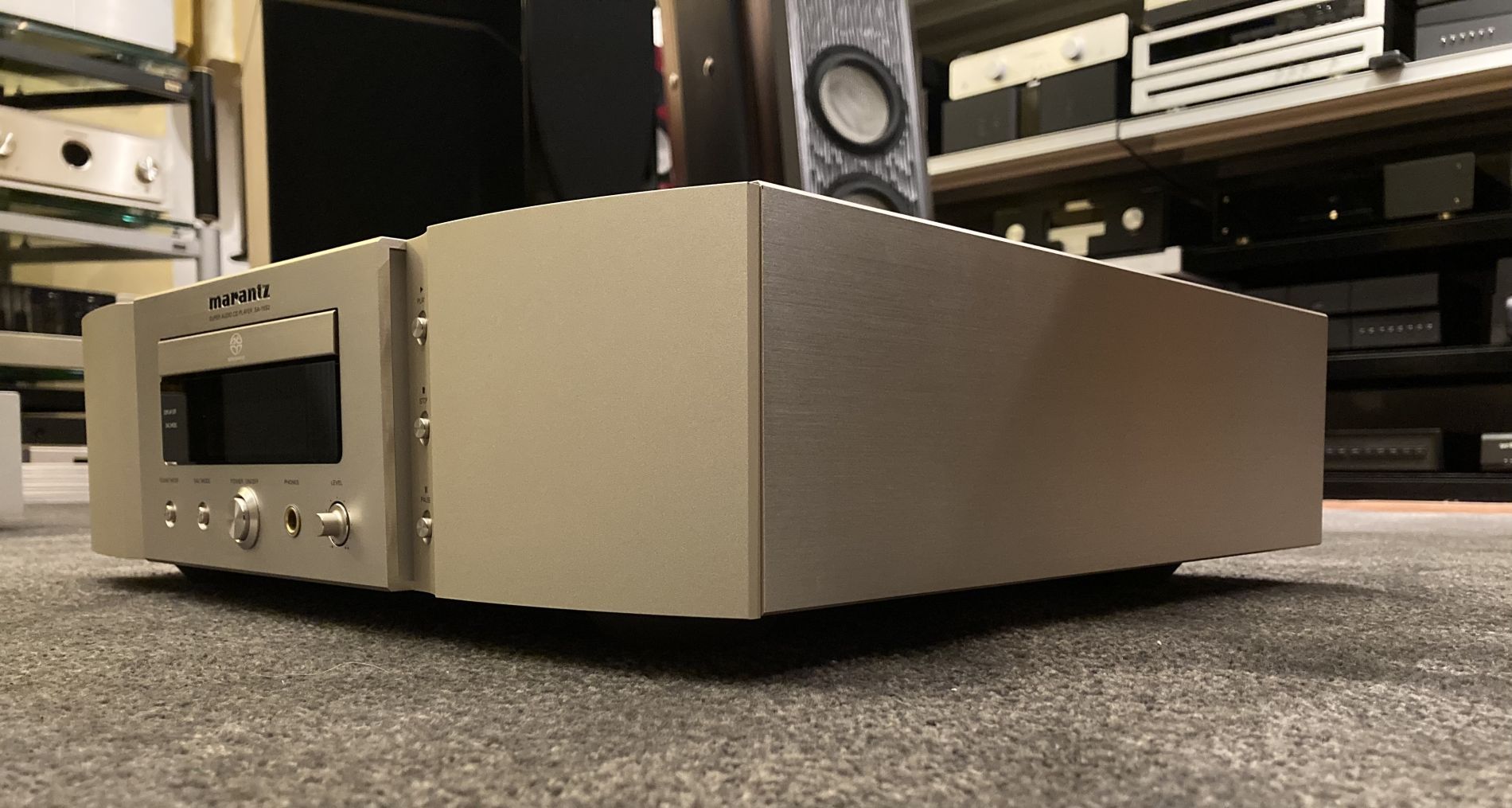

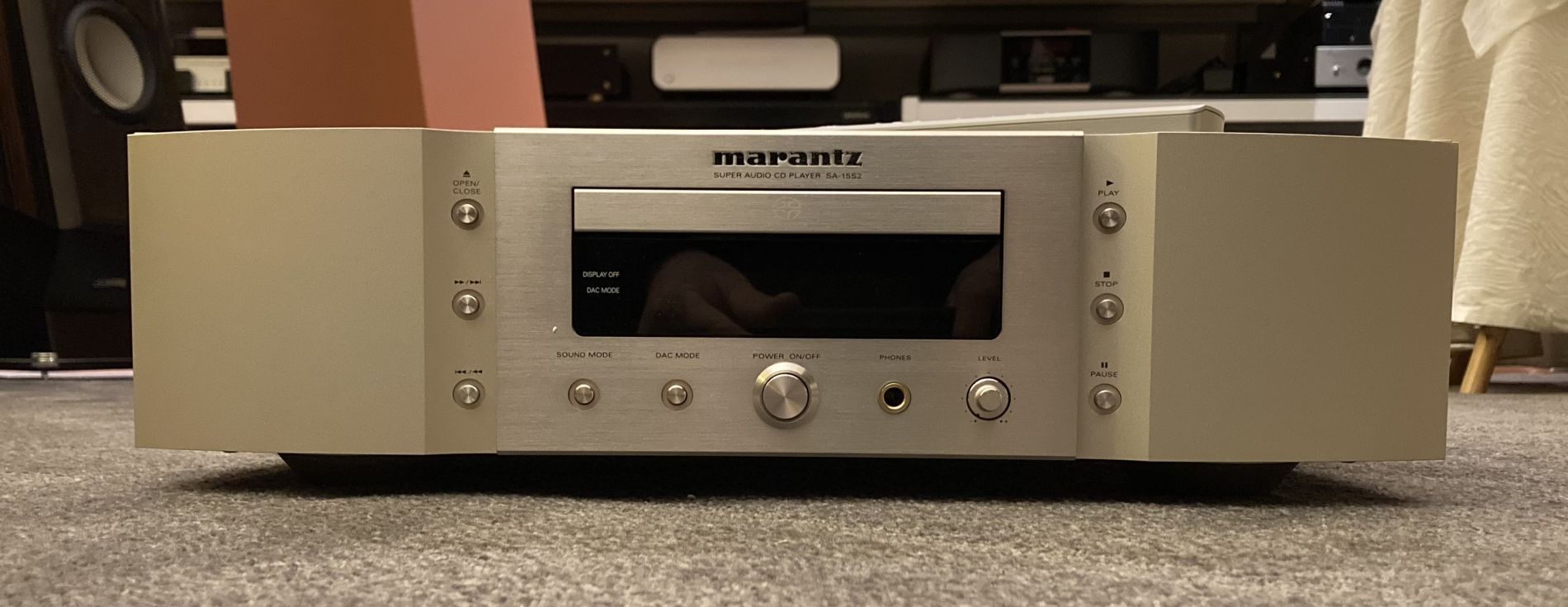

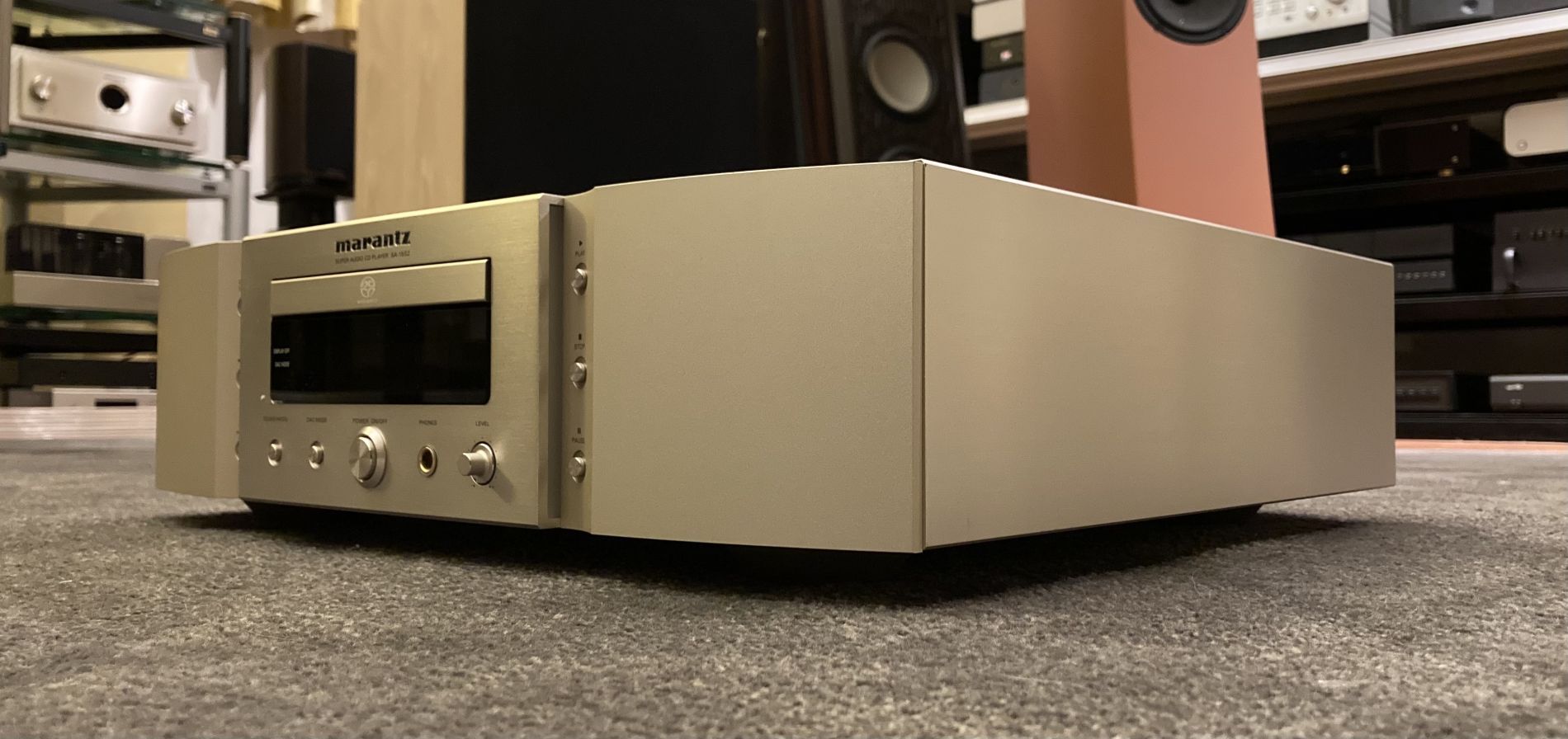

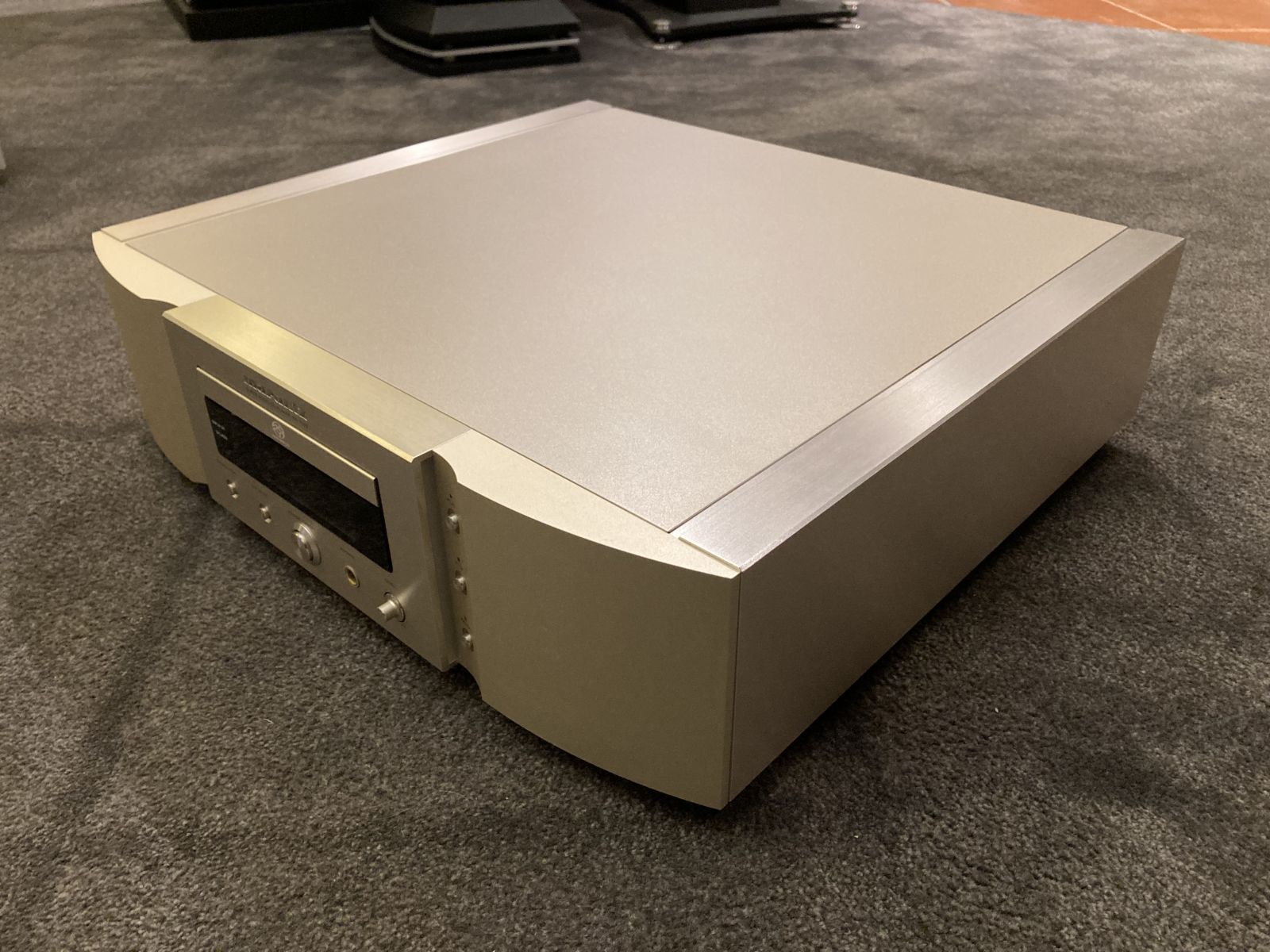

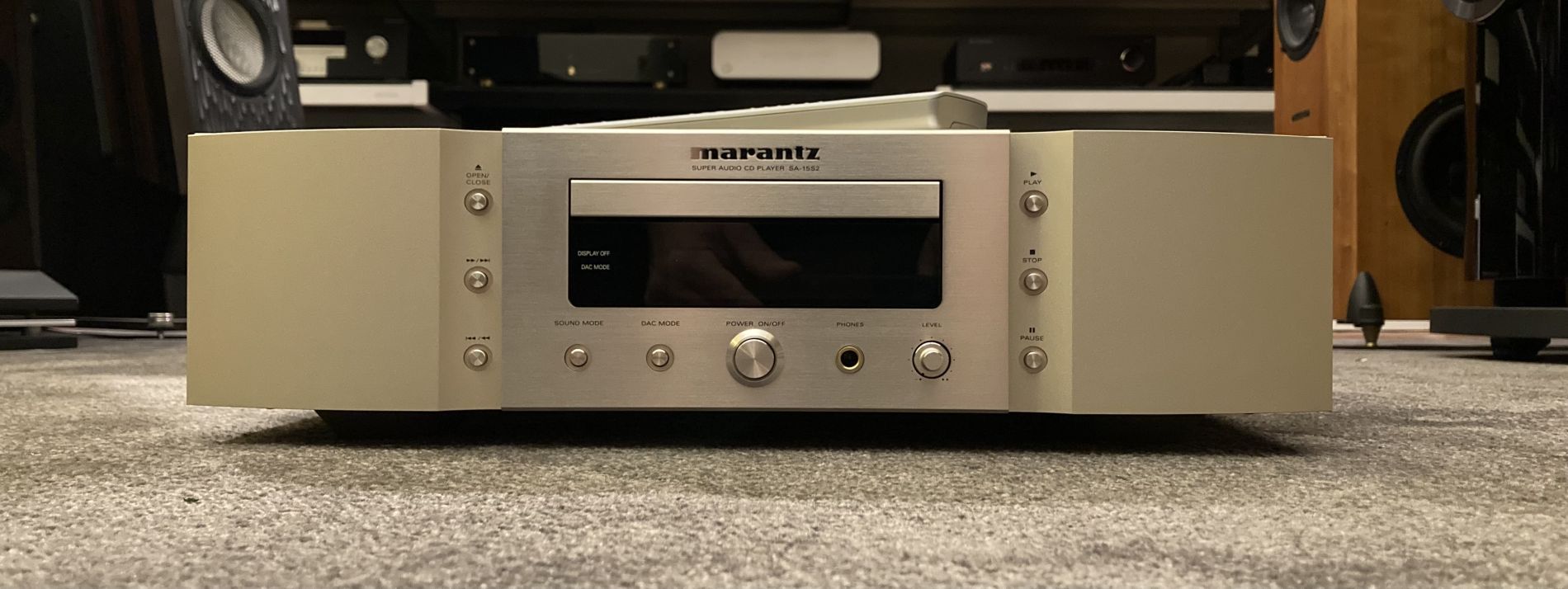

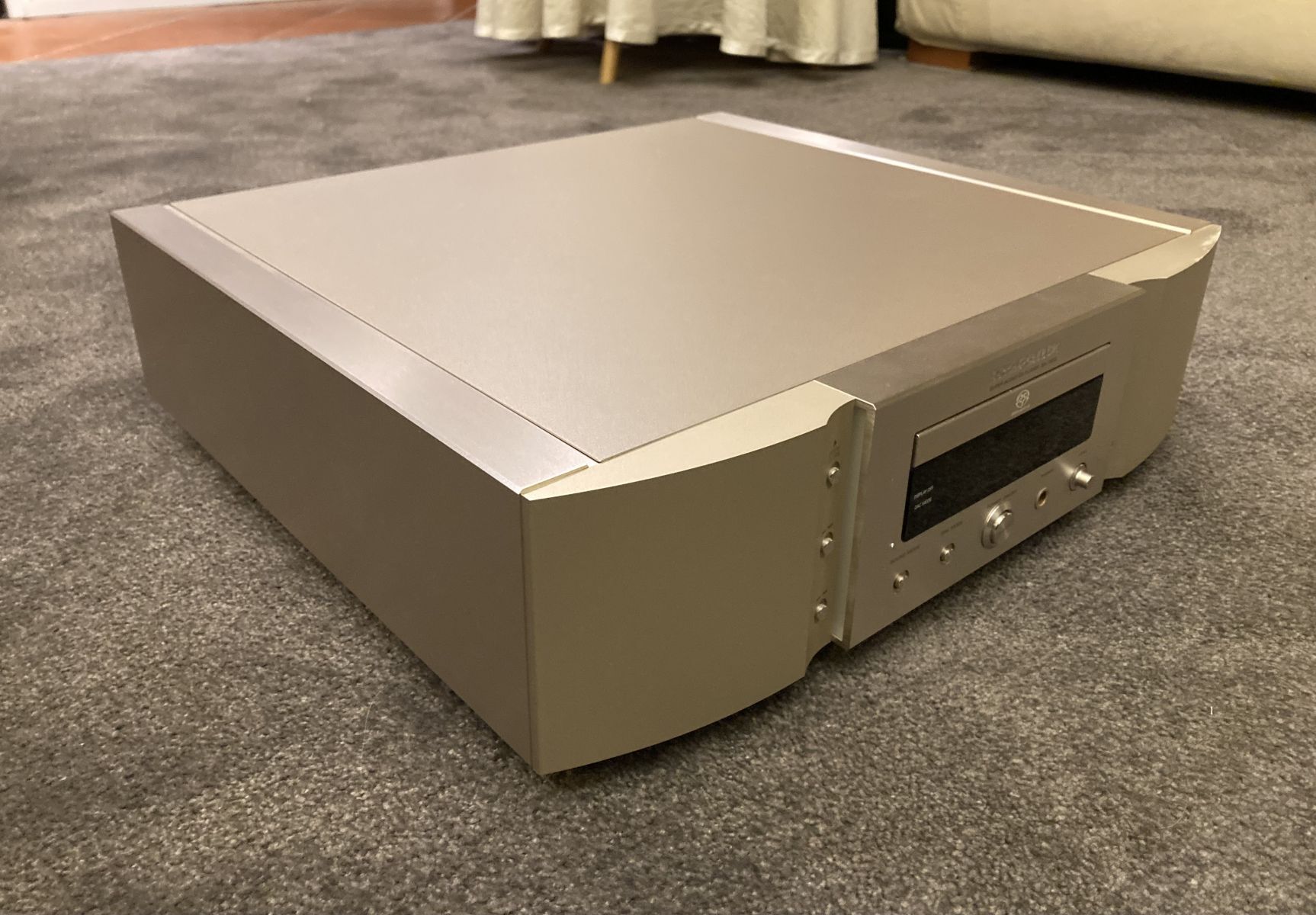

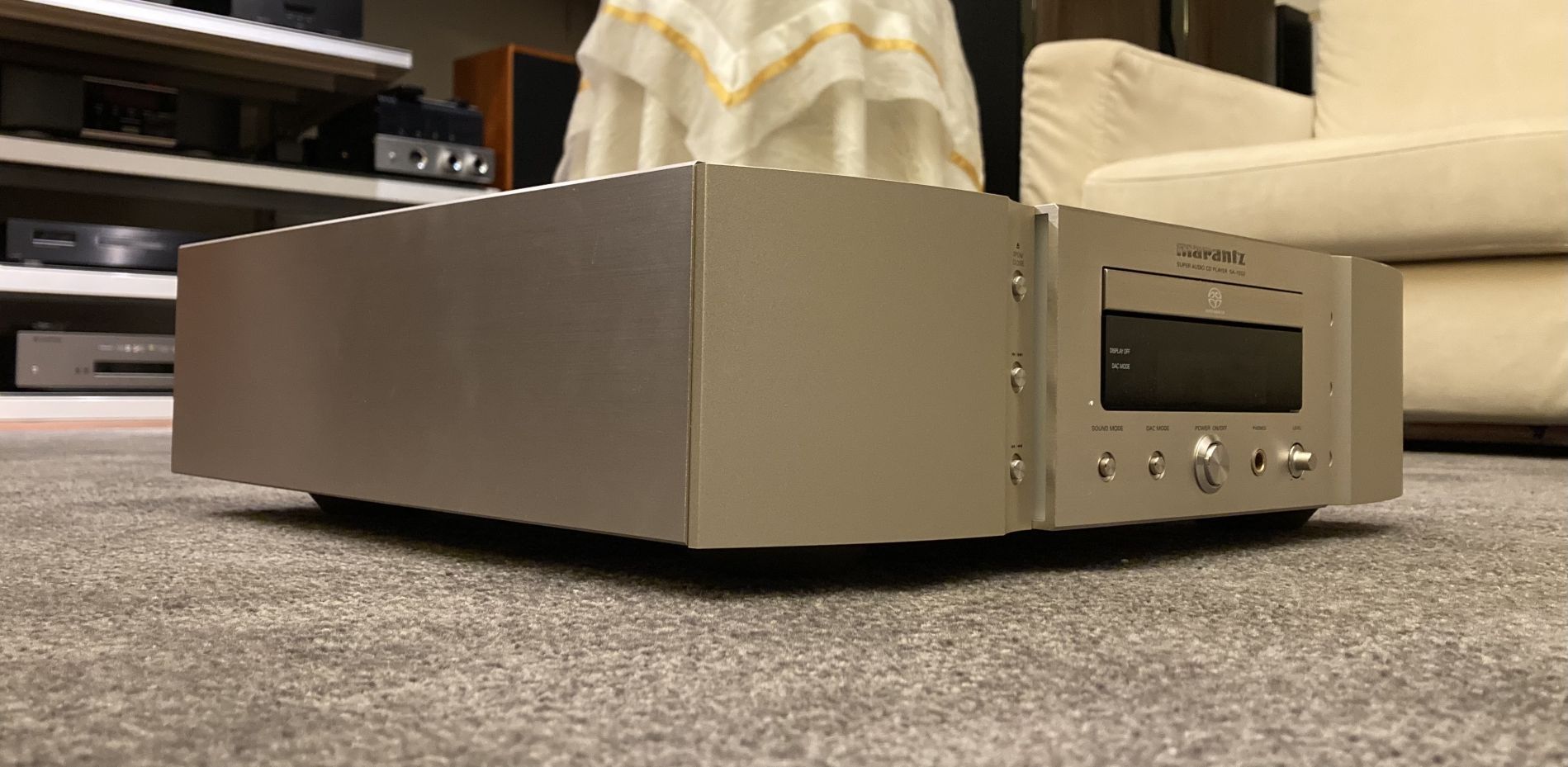

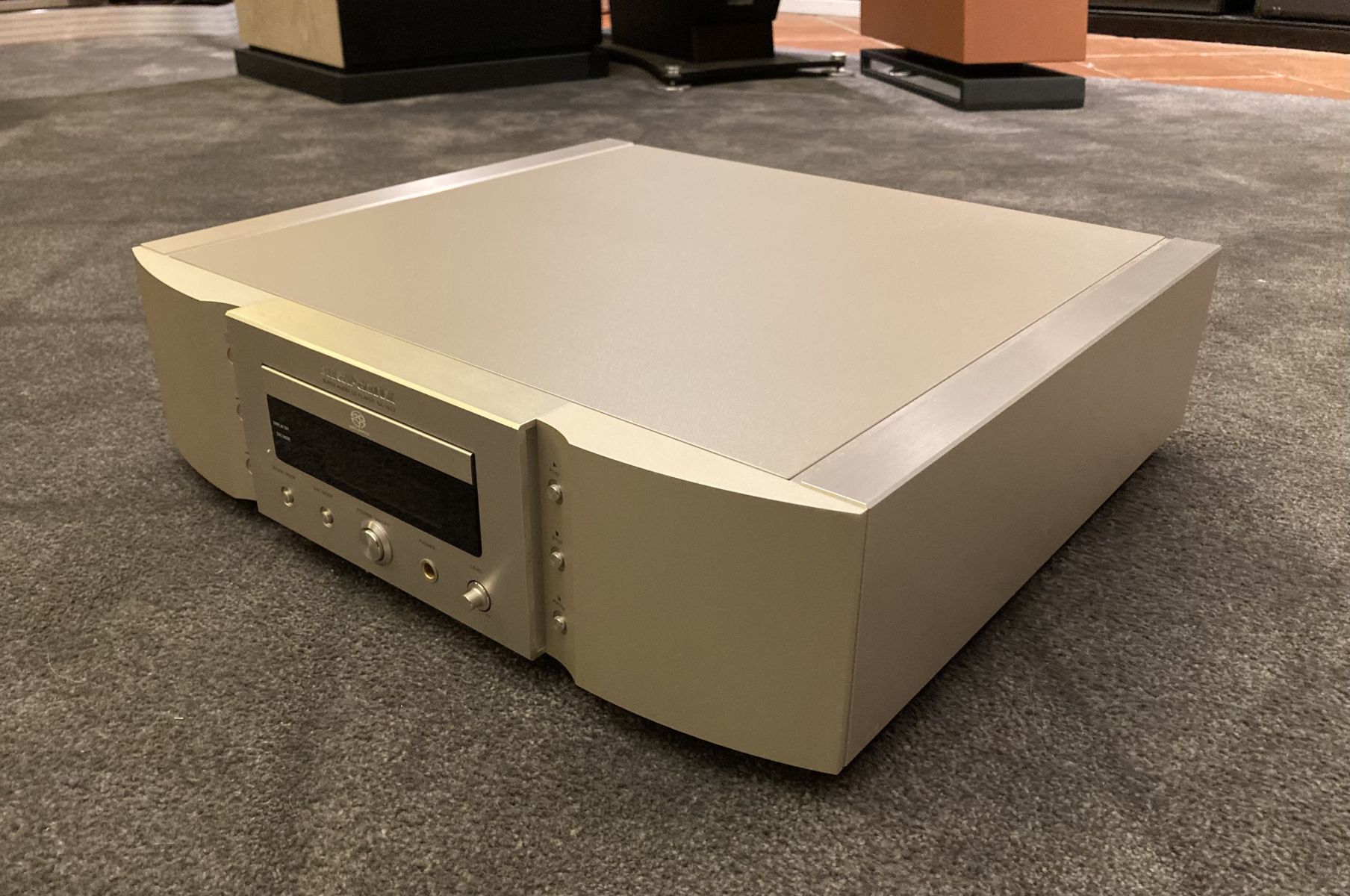

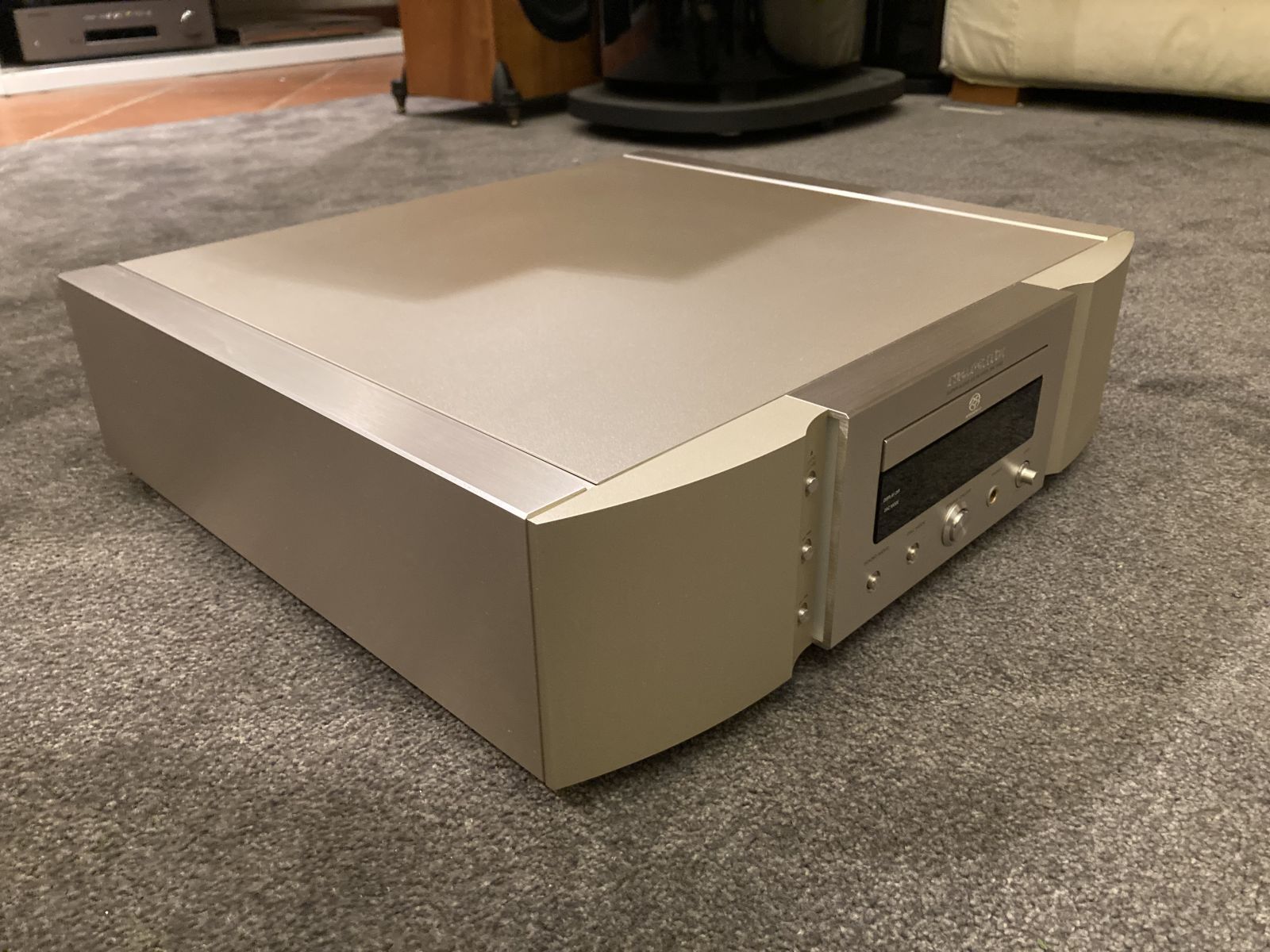

MARANTZ SA-15S2

€800,00

SPECIFICATIONS SA-15S2

Disc Capacity 1

CD Compatibility: CD / CD-R/RW / SA-CD / WMA /

MP3

o/o/o/o/o

SA-CD compatibility: Multi channel / stereo -/o

CD-Text / SA-CD Text / ID3 Tag/ WMA Meta Tag -/-/-/-

High Grade Audio Components o

Customized Components o

Symmetric circuit layout o

System block shielding: Copper / metal / none o/-/-

Power Transformer: Toroidal / El o/-

HDAM version SA+SA2

Shottky diodes o

Relay muting o

Selectable filter: CD / SA-CD o

Noise shaper (on/off) -

DC filter (on/off) -

Digital Phase Inverter -

External clock input -

Zero Impedance Matching joint (copper) o

Separated rectifier circuit for analogue and digital cir-

cuitry

GMR -

Digital out off / Audio EX Mode o/-

Display: Dimmer / Off o/o

Headphone: Standard / Buffer / Current feedback -/o (discrete amp)/-

Low Noise LCD display o

Copper plated chassis -

Extra metal plate for chassis strengthing o

PLAYBACK

Program Play o

Auto Music Scan (AMS) o

Repeat: track/program/A-B o/-/-

Random Play o

Peak search -

Edit Recording -

Pitch Control -

Start sound mode for SA-CD o

Quick Replay -

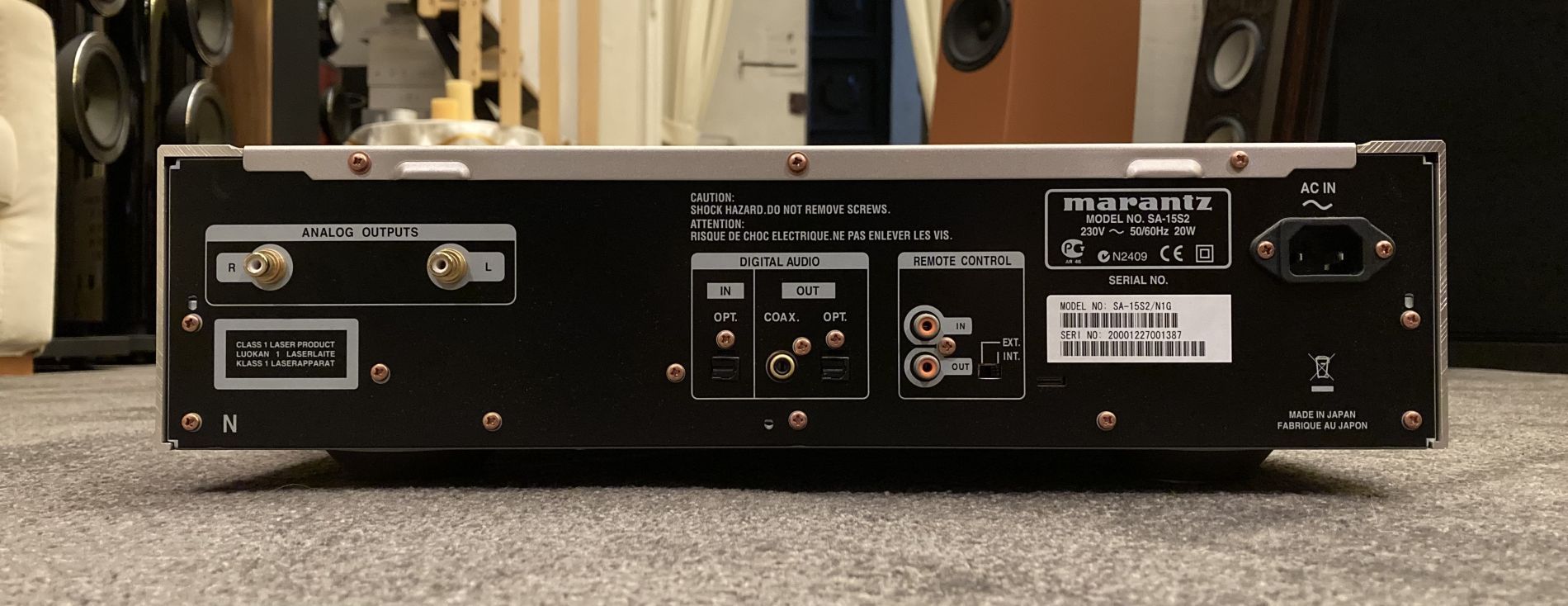

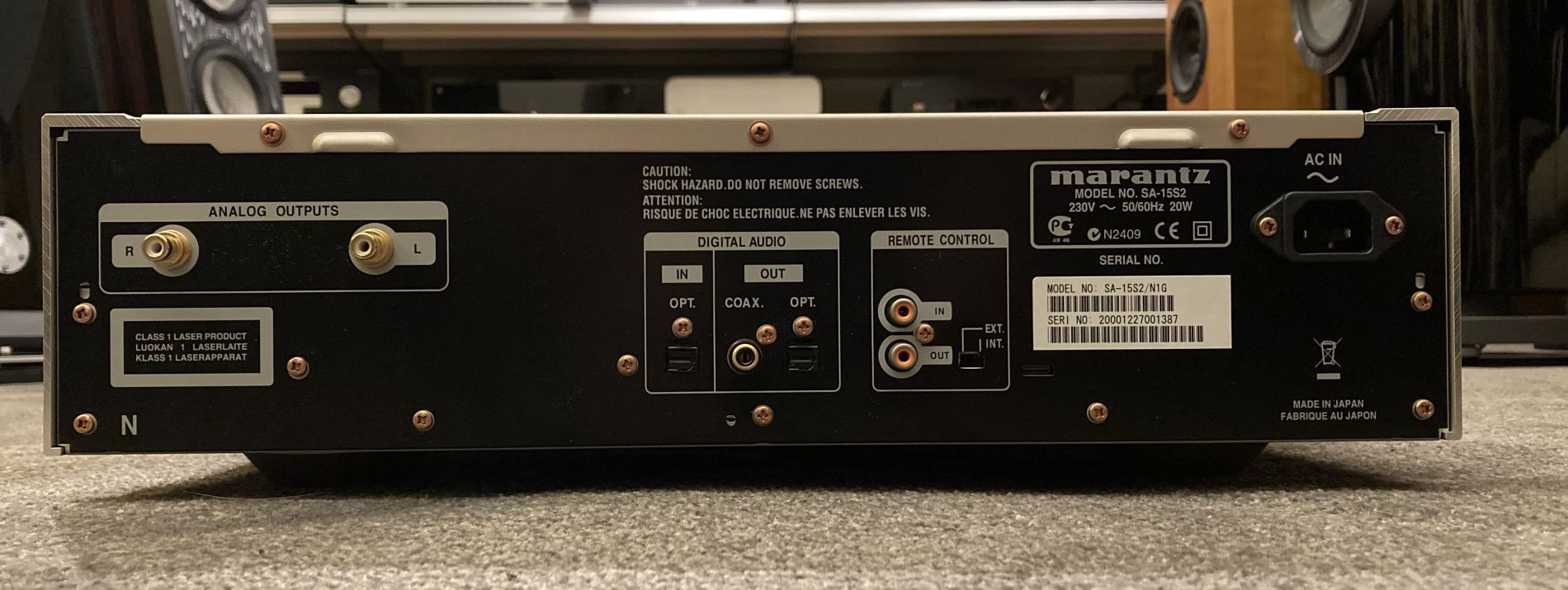

INPUTS / OUTPUTS

Analogue Out (Chinch) 2ch

Balanced Out -

SA-15S2

Digital optical out 1

Digital coaxial out 1

Digtal optical in 1

Gold plated cinch o

USB -

D-Bus o

RS-232c -

Headphone out o

Headphone volume control o

SPECIFICATIONS

Mechanism XYRON

Decoder MT1389

D/A Conversion CS4398

DAC I/C CS4398

Digital Filter o

Noise shaper o

Low Pass Filter Stage HDAM-SA+SA2

Output Buffer HDAM-SA2

Headphone amp o

SACD AUDIO

Frequency Response (Cust.) 2-100kHz

Dynamic Range (SA) 112dB

Signal to Noise Ratio (SA) 110dB

Total Harmonic Distortion (SA) 0.001%

Channel Separation (SA) TBC

CDDA AUDIO

Frequency Response 2Hz-20kHz

Dynamic Range 100dB

Signal to Noise Ratio 110dB

Total Harmonic Distortion 0.0015%

Channel Separation TBC

GENERAL

Available colors: Gold/Silver/Back/Silver-Gld o/o/-/-

Metal front panel o

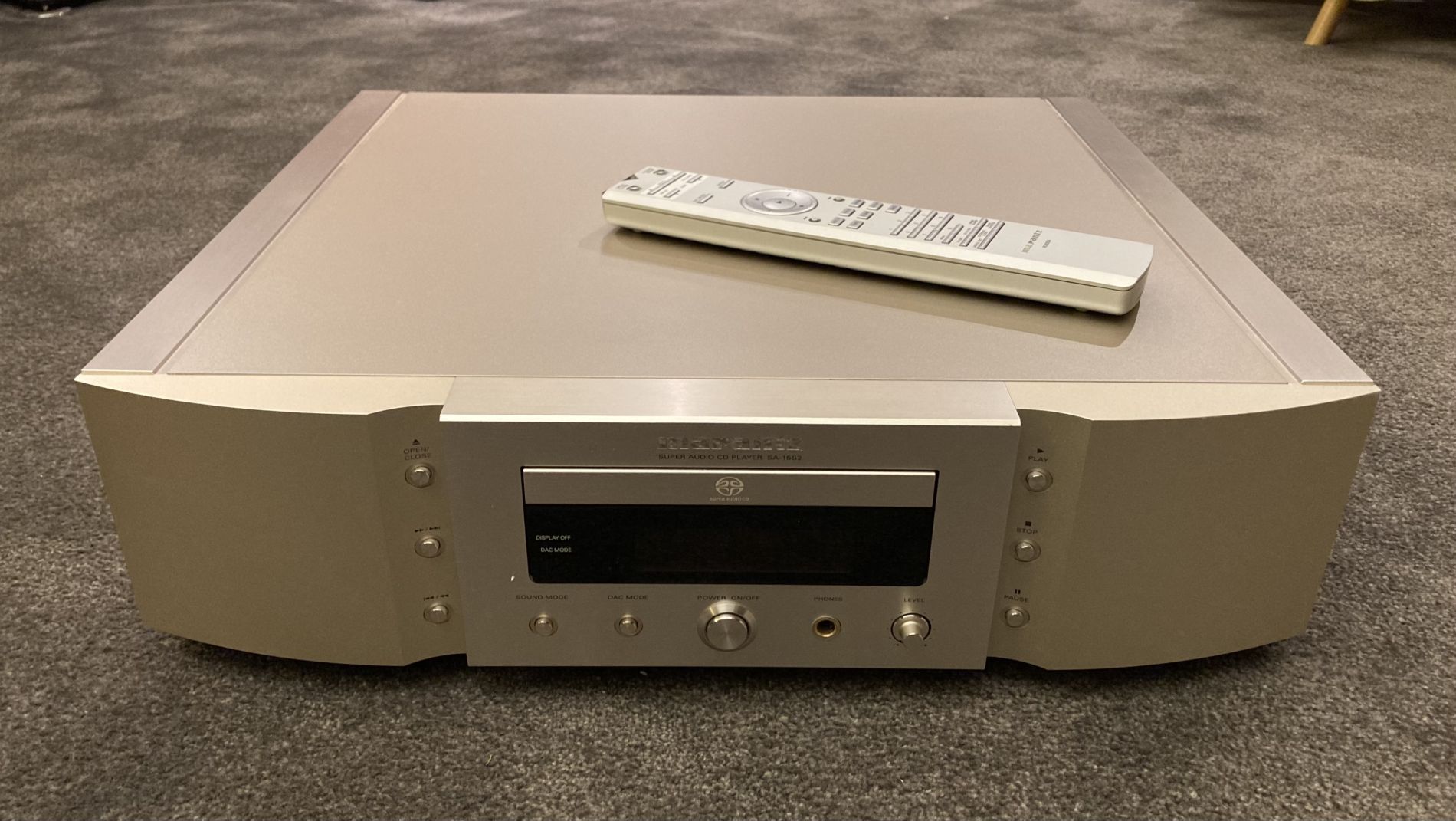

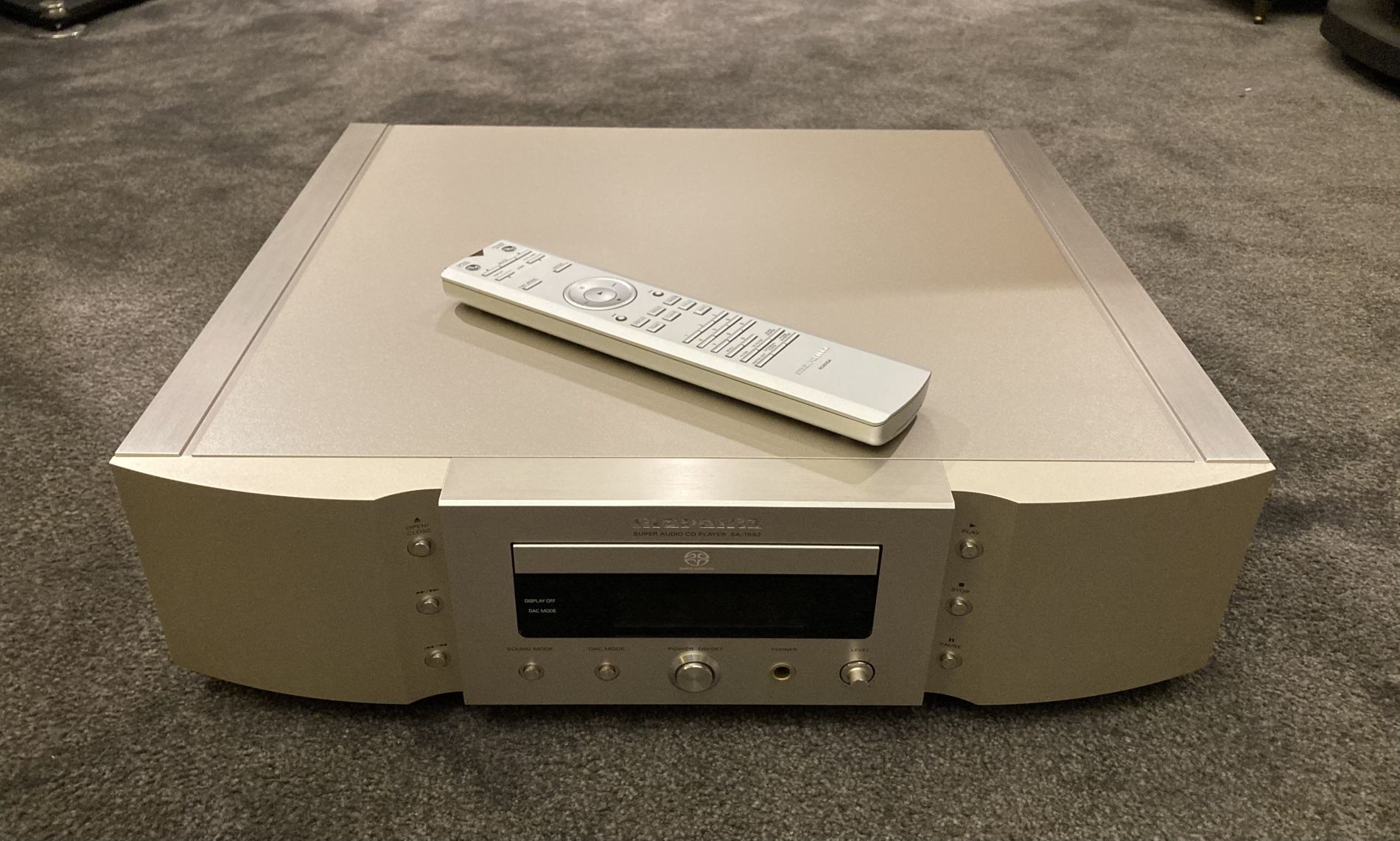

Remote control RC003SA

Power consumption (W) 25

Power consumption in stand-by (W) -

Detachable power cable o

Maximum Dimensions (W x D x H) in mm 440x319x123

Weight in kg 13.5
