SPECTRAL DMC-30

€5.000,00

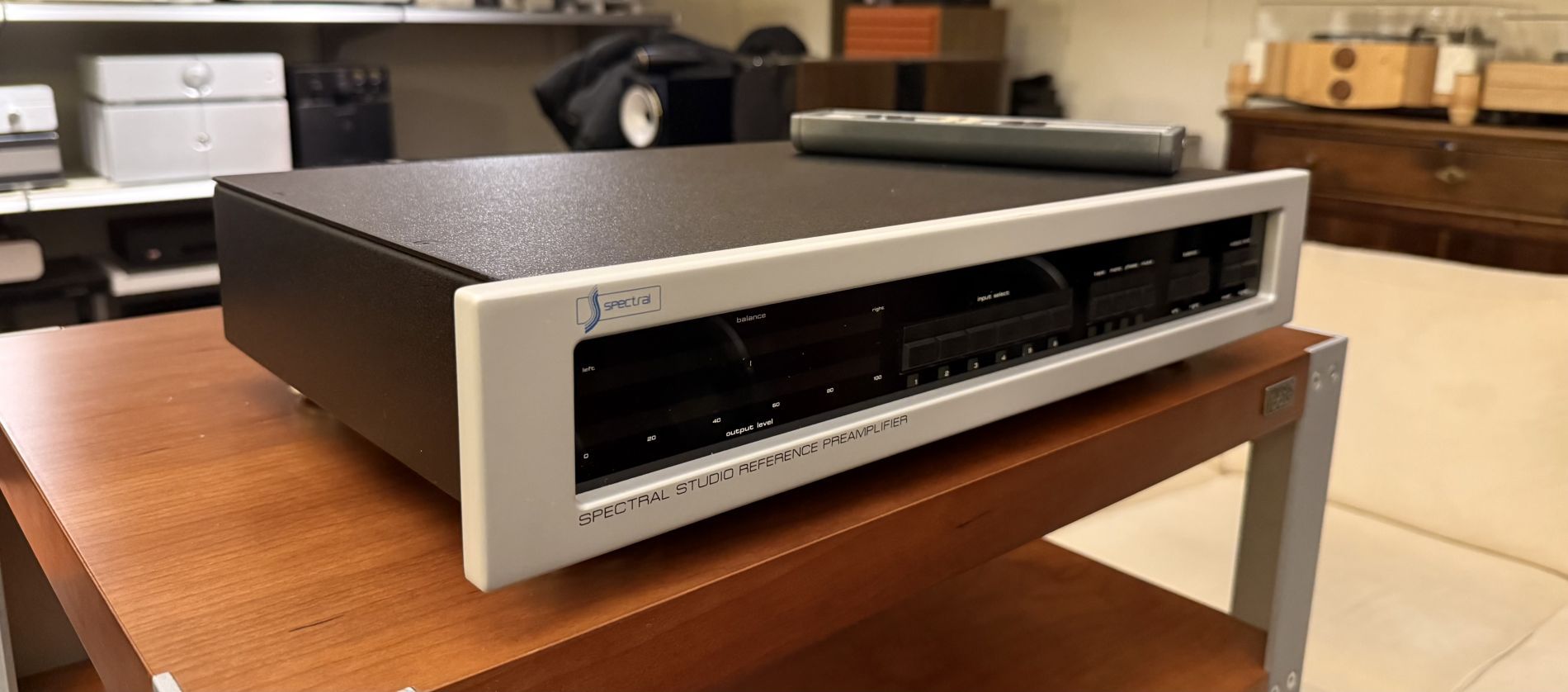

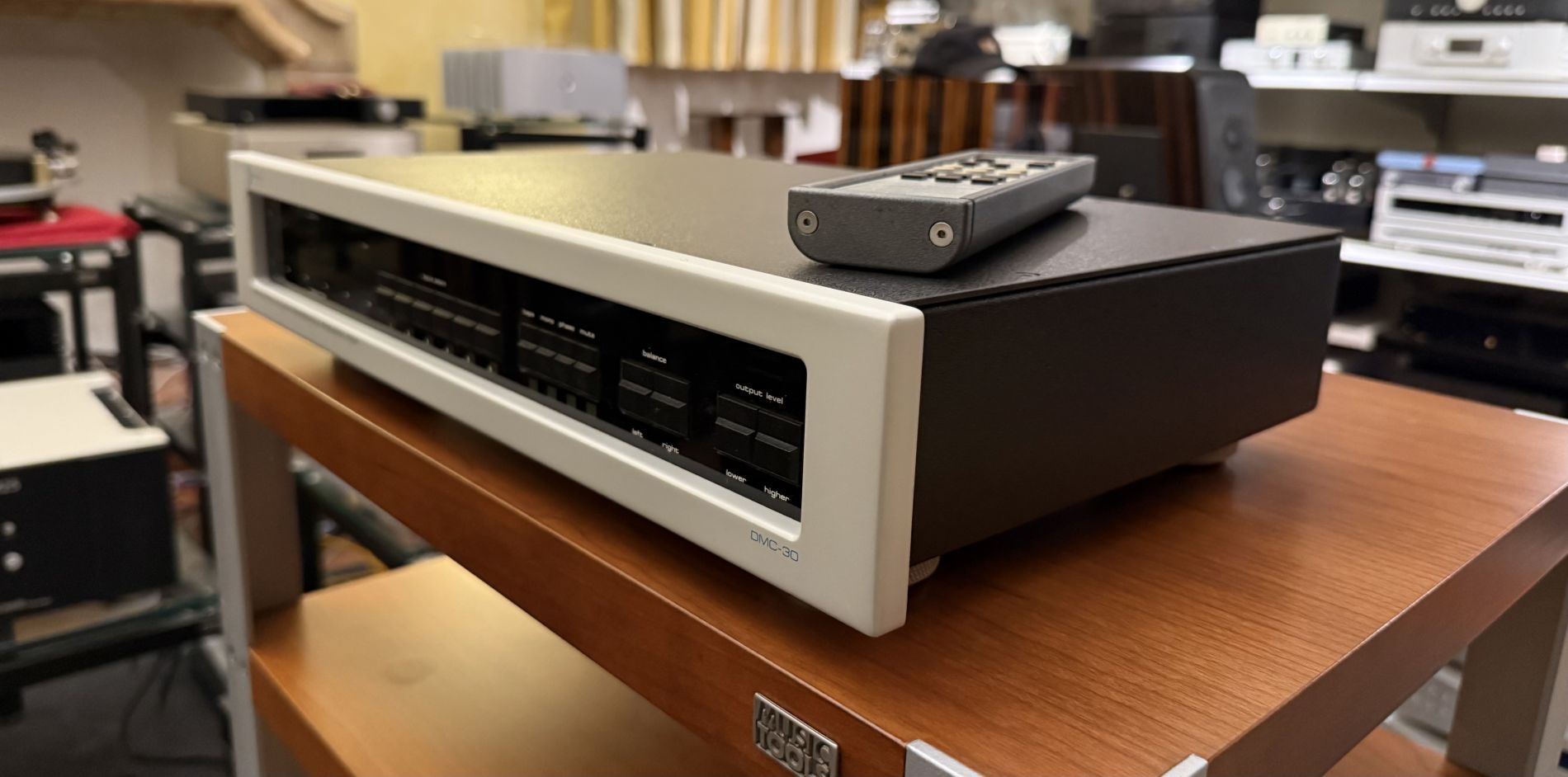

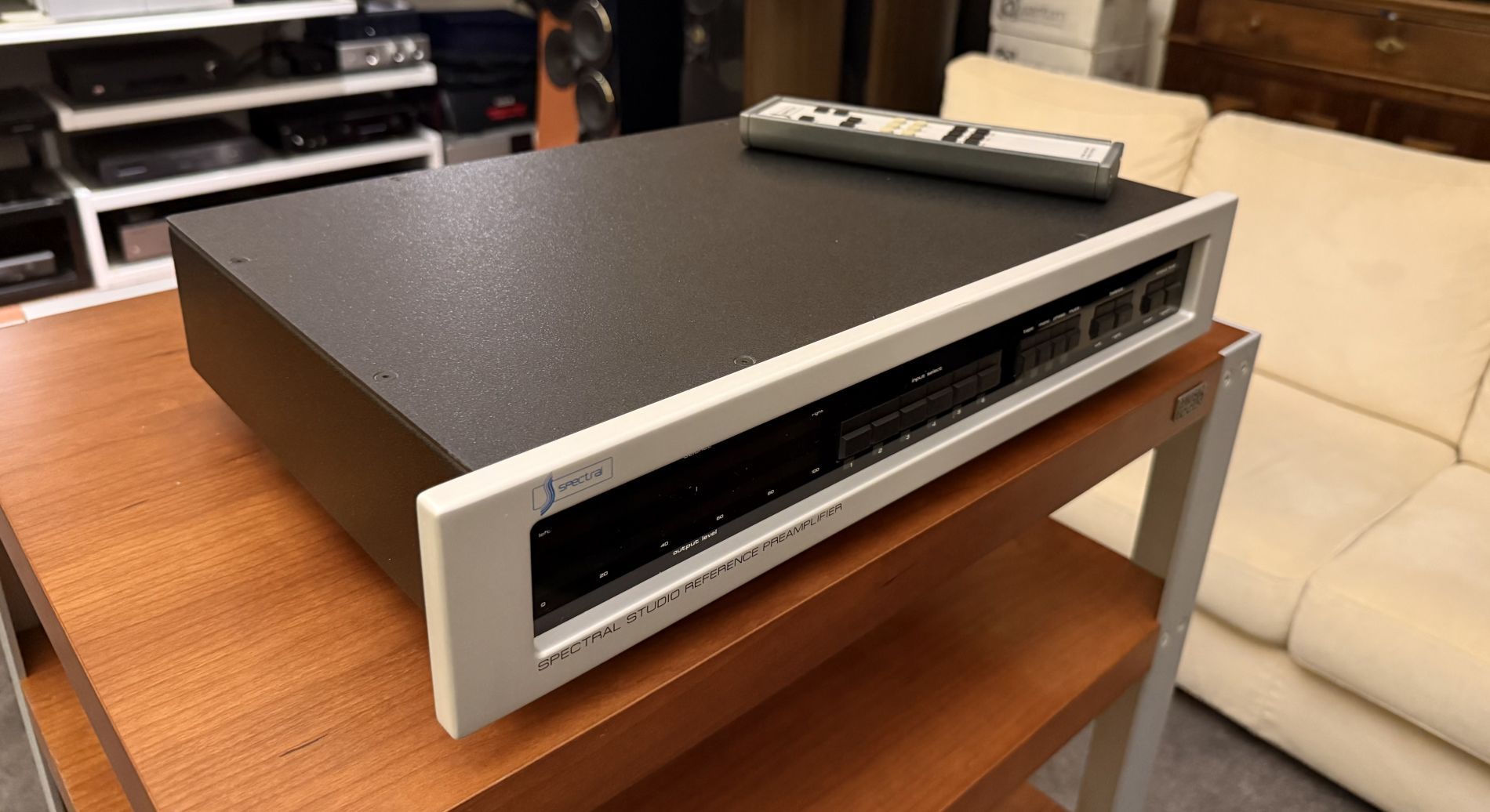

DMC-30 Reference Preamplifier

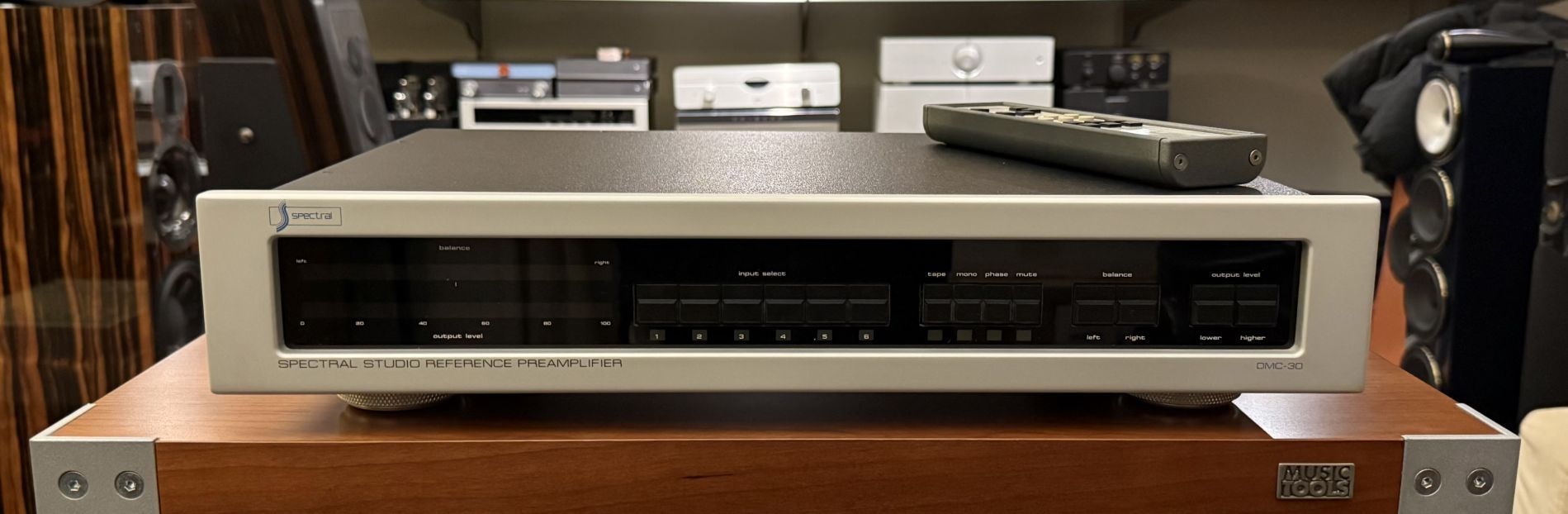

Front Panel Controls

Output Level
Balance left/right
Input selectors
Monitor switch
Stereo/Mono switch
Absolute Phase switch
Mute Switch
Surround LED indicator
Protection LED indicator
Front Panel Display
Output Level display - 50 step LED
Output Balance display - 50 step LED

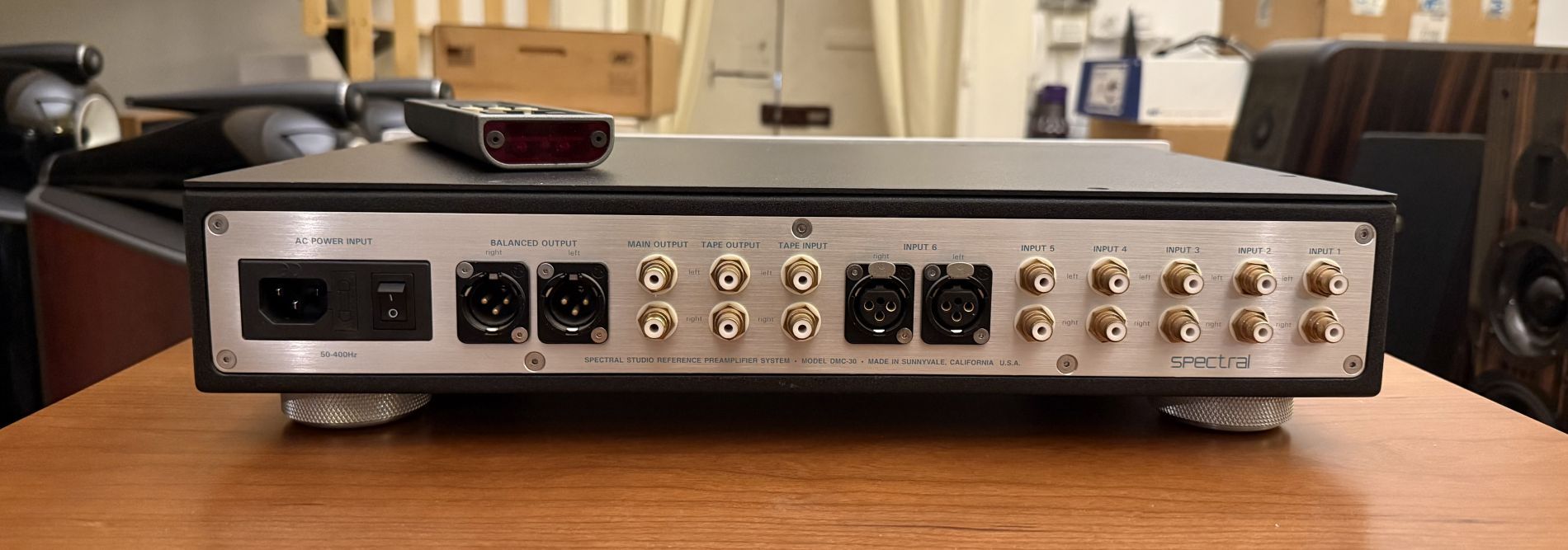

Rear Panel
5 RCA Input connector sets (gold)
Balanced Input Neutrik XLR connectors (gold)
Tape input and output RCA connector set (gold)
Main Output RCA connectors (gold)
Balanced Output Neutrik XLR (gold)
AC Power input connector, switch and line fuse

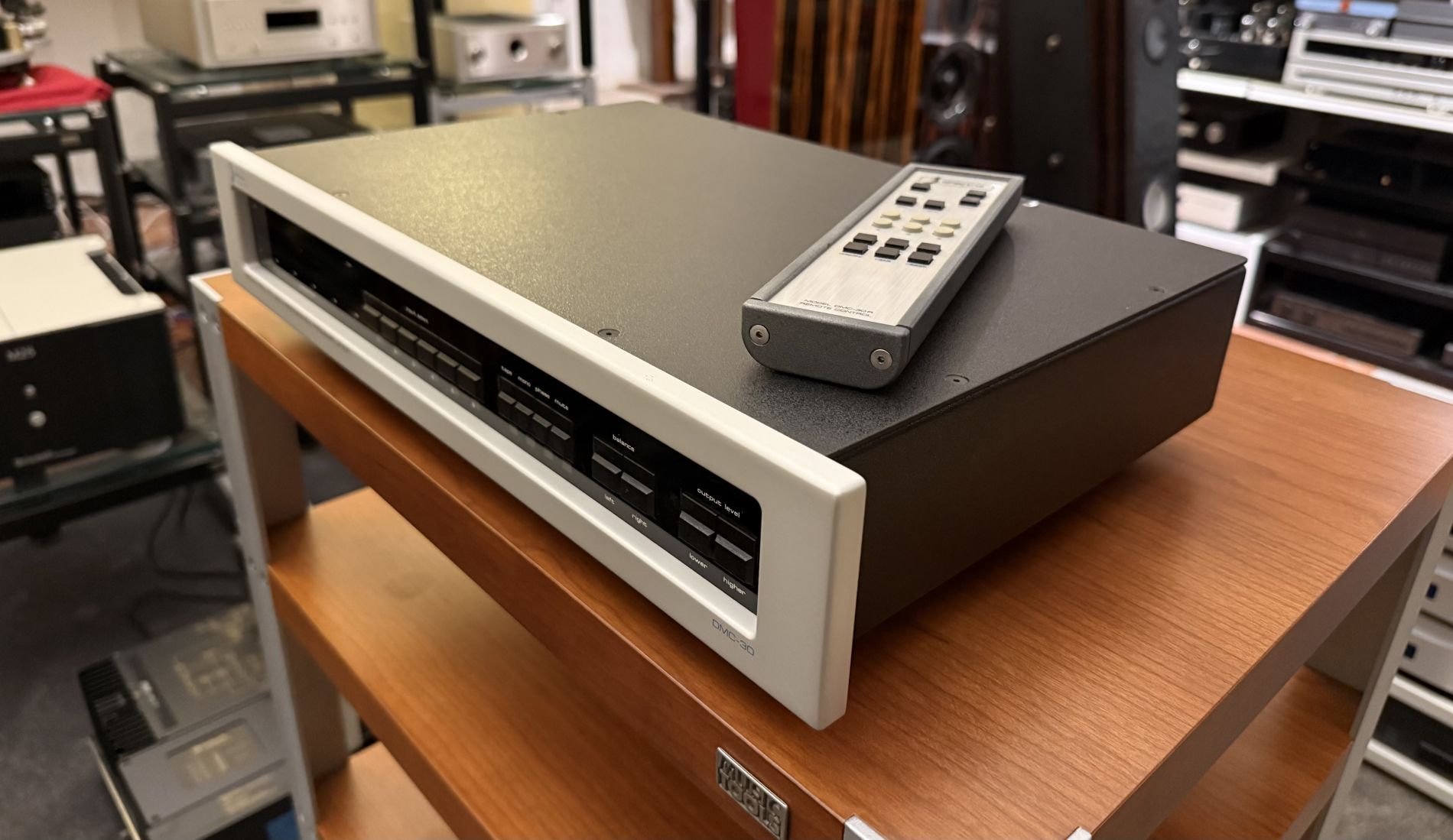

DMC-30R Remote Control

Control Buttons
Output Level
Channel Balance
Mute
Input selectors
Stereo/mono
Phase Invert
Tape Monitor
Display Brightness
Control Rate
Control Reset

DMC-30 Preamplifier Technical Data
Input Compliment:	7 inputs
Output Compliment:	3 outputs - normal, balanced, tape
Input Impedance:	15k ohms
Input Attenuation:	0, -12 dB
Output Impedance:	100 ohms
Control Compliment
Output Attenuation:	Motorized fader conductive plastic, modified log taper
Output Balance:	Relay attenuator system with center position bypass
Mute Switch:	0, -20 dB attenuation
Mode switches:	Stereo/mono, absolute phase
Input Selections:	6 plus tape monitor
Recording Amplifiers
Input Impedance:	11K ohms, 100 ohms minimum load
Output Impedance:	2K ohms
Protection Circuit
Protection Mode:	CD offset, oscillation
Method:	Crowbar output relays
Sensitivity:	20 mV continuous DC
Recovery:	Approx. 10 seconds
Chassis Temperature:	Internal 40 deg. Celsius @ 25 deg. room temp
Model 201 Balanced Output Module
Fully Balanced Operation:	All DC coupled
Frequency Response:	DC to 2.5 MHz +-0.10 dB -3 dB at 15 MHz Any level to 36 V RMS
Slew Rate:	1000 V/us or greater
Rise Time:	70 ns
Distortion:	Less than .01% THD and IM
Crosstalk:	Greater than 90 dB
Noise:	105 dB A Weighted, ref 100 mV @ 1 KHz
Output Voltage:	1.6 VRMS, 100 V peak to peak maximum
Output Current:	1 Amp maximum per channel, balanced out
Gain Options:	15 dB, 21 dB
Model 303 Balanced Input Module (optional)
Fully Balance Operation:	All DC coupled
Frequency Response:	DC to 10 MHz +-0.10 dB -3 dB at 15 MHz
Slew Rate:	500 V/us or greater
Distortion:	Less than .01% THD and IM
Input Impedance:	10K ohms
Gain:	0, -10dB attenuation continuaously variable
Power Supply Technical Data
Line Voltage:	100 volts, 120 volts
AC Voltage Range:	+-10%
Quiescent Consumption:	80 Watts
Protection:	Short circuit, over voltage, line transient protected
Operating Temperature:	0 deg. to +50 deg. Celsius 32 deg. to +122 deg. Fahrenheit
AC Main Fuse:	5 x 20mm 1A slo blo
DMC-30 Preamplifier Mechanical
Weight:	26 lbs. (11.8 KG)
Dimensions:	4 1/10"H x 19"W x 12 1/4"D (10.4 cm x 48.3cm x 31.1cm)
