Sidebar 4: Specifications
Dimensions: 16" W by 42" H by 9" D. Weight: 42 lbs.

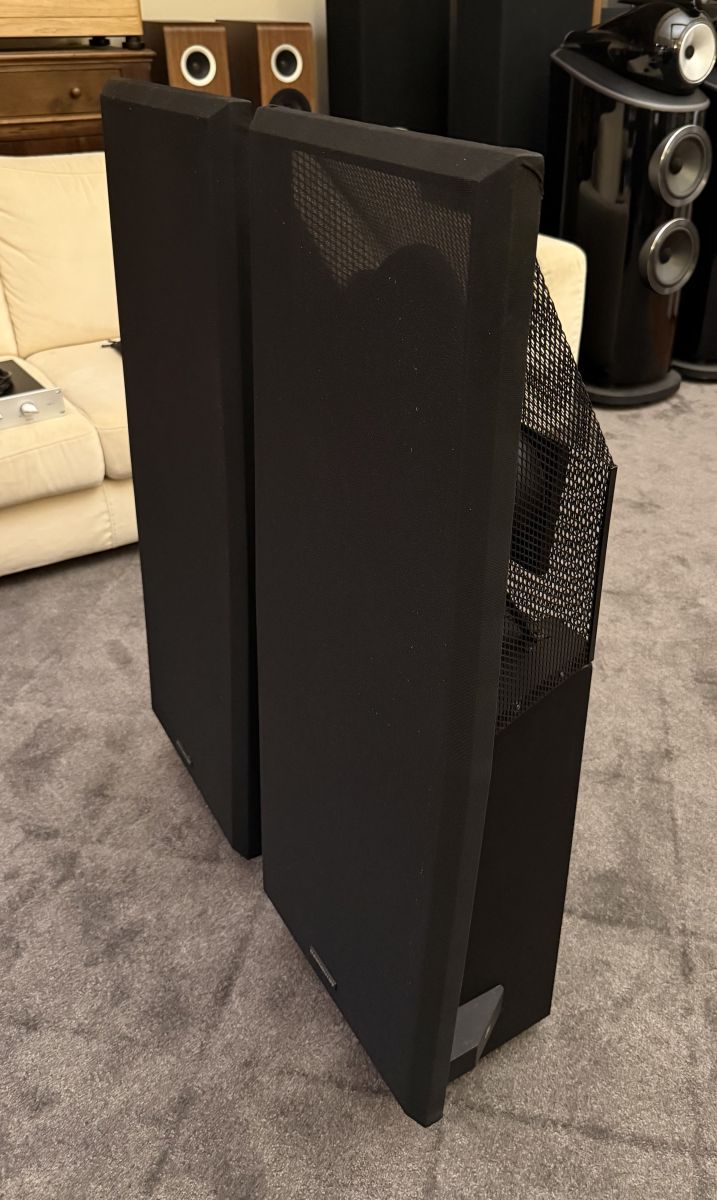

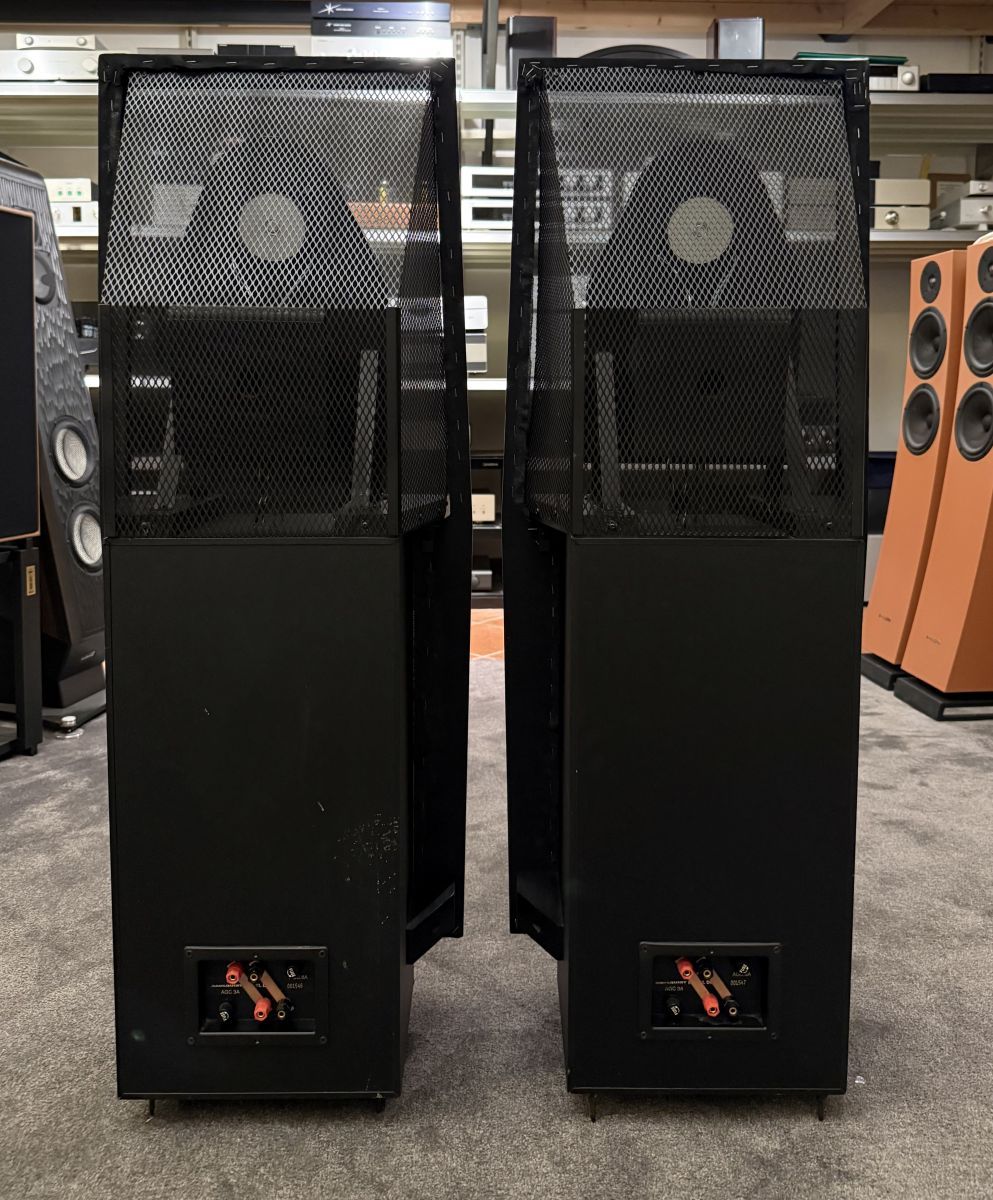

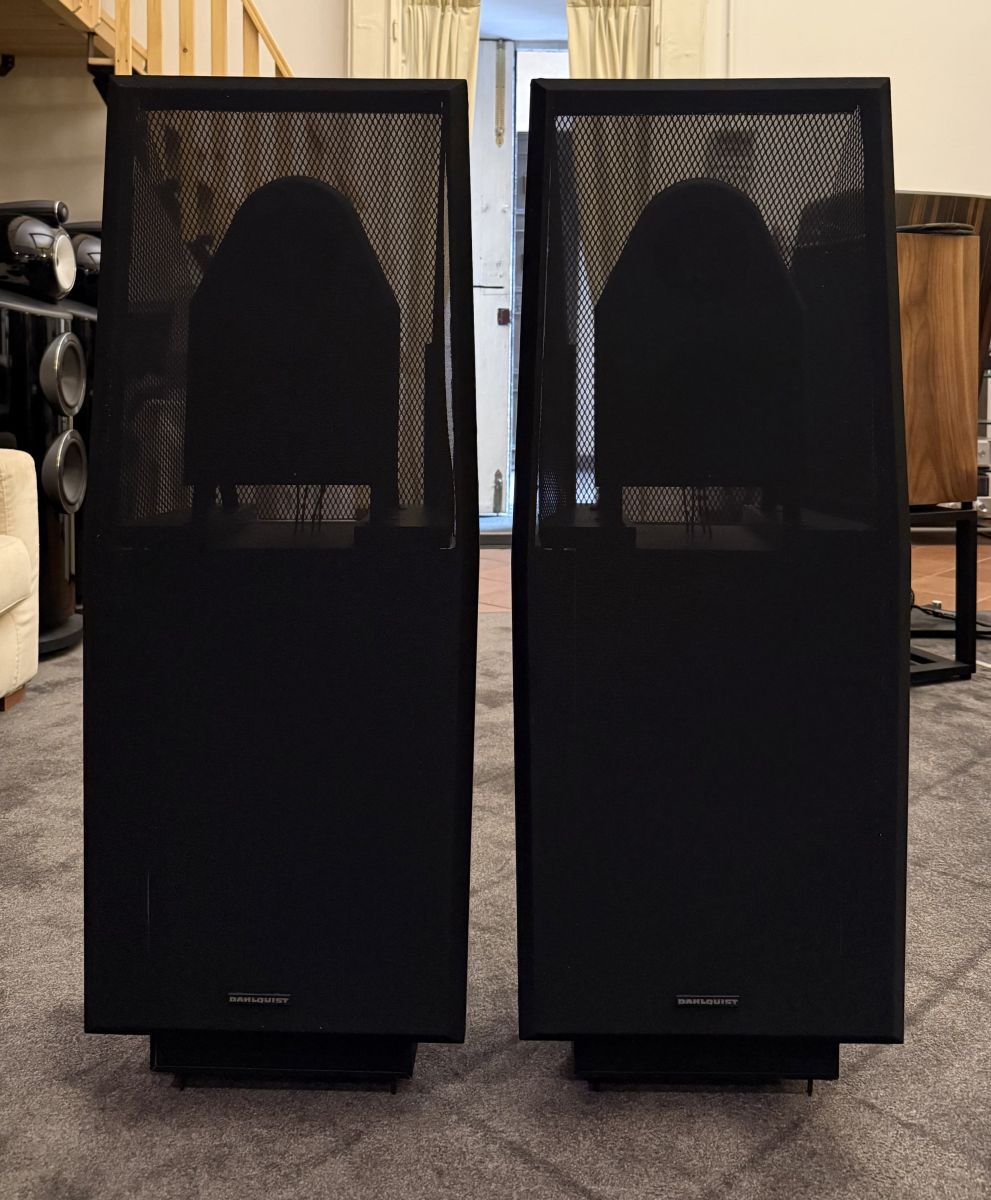

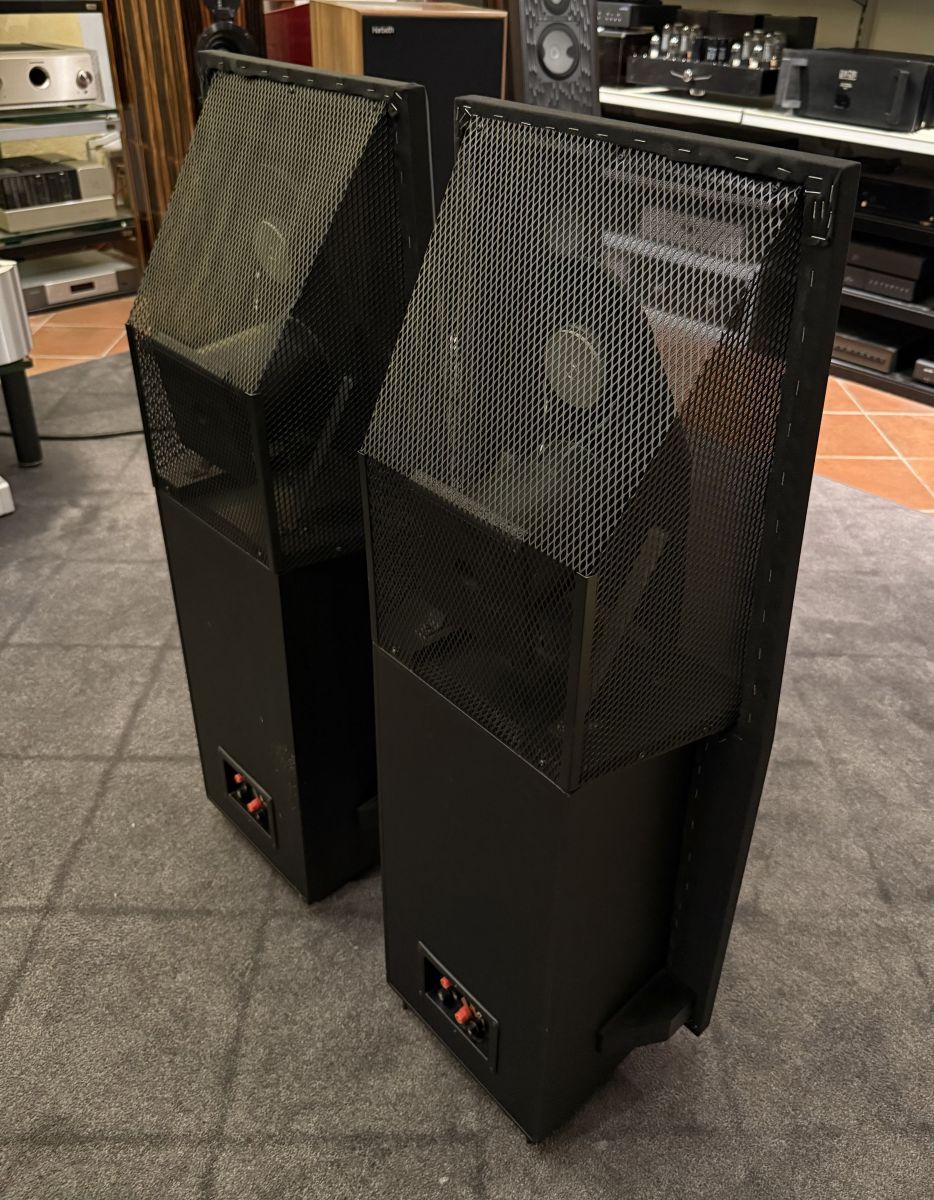

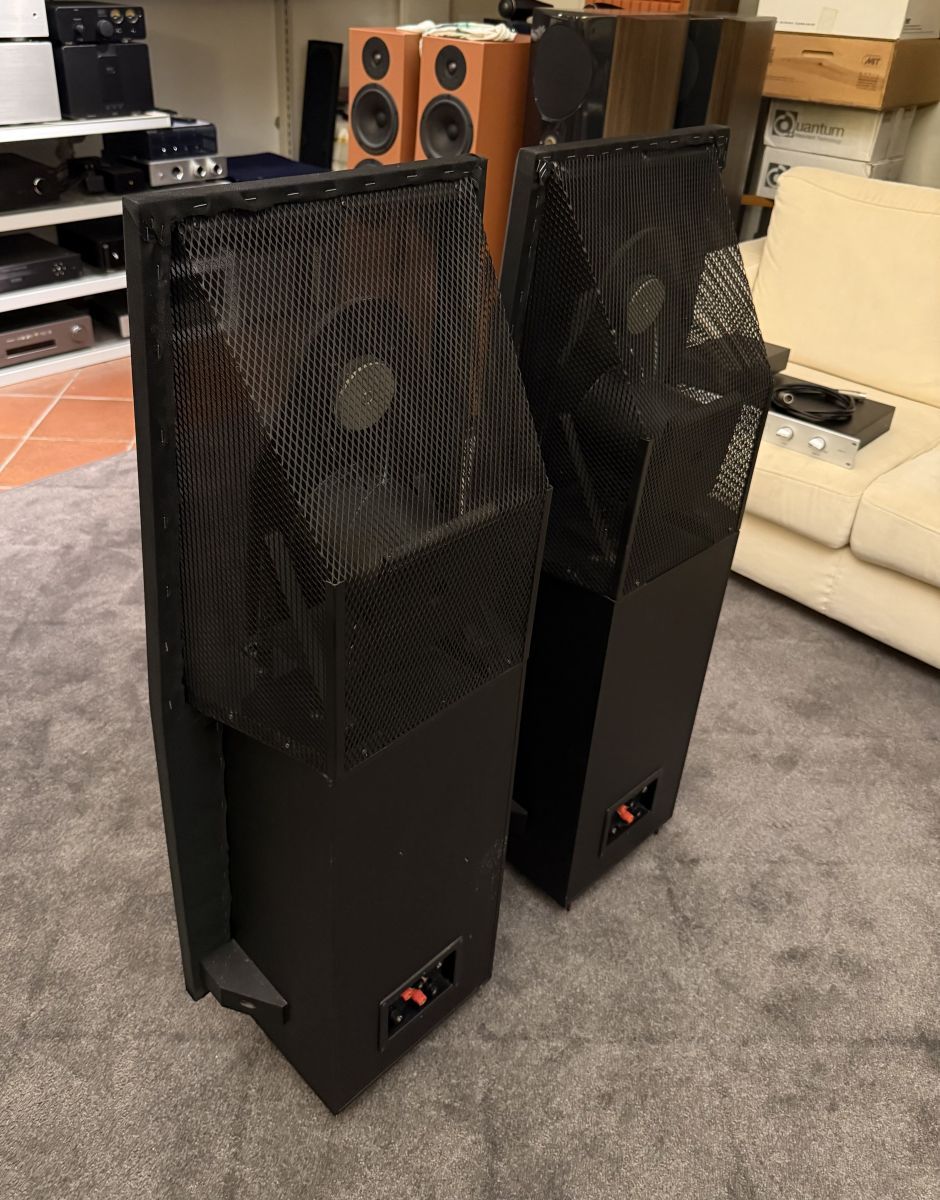

Description: "Phased Array" three-way, sealed-box, floor-standing loudspeaker. Drive-units: 8" woofer, 5" laminate-cone midrange, and 1" low-mass dome tweeter. Crossover frequencies: 400Hz, 3500Hz. Impedance: 8 ohms nominal, 5 ohms minimum. Power requirements: 40W minimum, 125W maximum. Frequency range: 35–20kHz (no tolerance given). Sensitivity: 86dB (distance and input power not specified, but assumed to be 1W/1m). Connections: Four gold-plated five-way binding posts (biwirable). Fuses: one AGC 0.8A tweeter fuse, one AGC 3A woofer fuse. Accessories included: 1/4-20 threaded spiked feet. Finish: black with black cloth grille.
